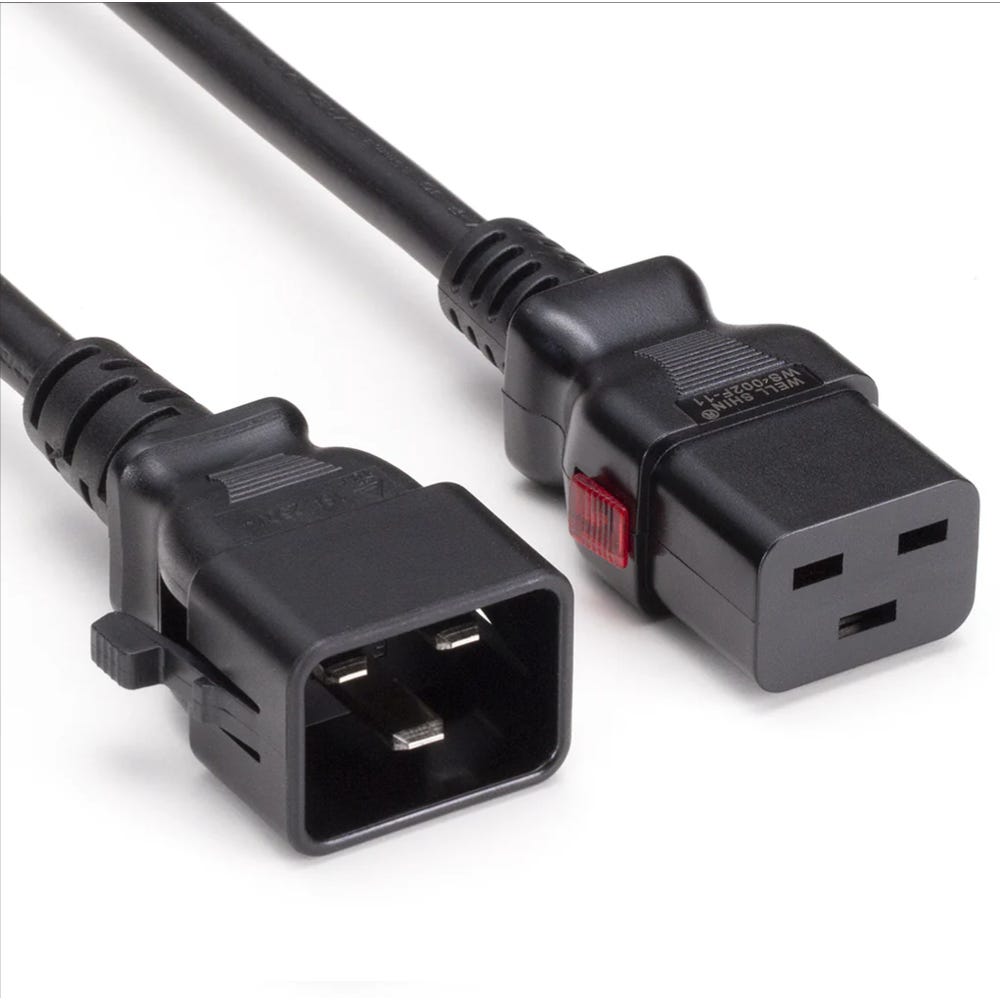

1 Meter TwyLock® USA IEC C20 to C19 20A SJTW Dual Locking Cords
Main image
Click to view image in fullscreen
calcActive())">
1 Meter TwyLock® USA IEC C20 to C19 20A SJTW Dual Locking Cords
$33.95
In stock
—
Ships today when ordered by 1 p.m. PST
Easy
returns
returns
Secure
checkout
checkout
Offers & perks
Join SF Rewards & earn points on every purchaseFree to join · Sign in
TwyLock® C20 to C19 dual locking power cord: IEC C19 to IEC C20 with 12/3 SJTW wire. UL and cUL approved. Rated up to 20A 250V. Available in multiple colors and lengths.
- Locks on both ends without extra intervention. Easy to unlock.
- Compatible with P-lock equipment
- High quality. Certified by UL and cUL
- All cables certified up to 105°C operating temperature
- Compatible with most snap-in sockets of major PDU manufacturers
-
High retention force. Pull force 30lbs (14kg) for 1 minute
-
Multiple Colors available: black, red, blue and white. More colors on request
- Available in lengths from 1.0 meter to 2.5 meters. Other lengths on request
- Easily identifiable with part number and serial number labels on both ends
- Packaged in circular shape, not kinked
| Attribute | Specification |
|---|---|
| Male Plug | IEC60320 C20 3 prong 20A |
| Female Receptacle | IEC60320 C19 3 prong 20A |
| Wire Jacket Standard | SJTW |
| Gauge | 12 AWG |
| Conductors | 3 wire |
| Copper Wire Stranding | 65 strands of 0.254mm wire |
| Jacket Material | PVC |
| Temperature Rating | Up to 105°C |
| Wire Outer Diameter | 10.8mm |
| Conductor Color Code | Black, White and Green / NACC (North American color code) |
| Voltage | Up to 250 Volts AC |
| Amperage | Up to 20 Amps |
| Color | Multiple |
| Number Per Carton | Varies |
| Carton Weight | Varies |
| Carton Dimensions | (46 X 31 X 27cm) |
| Testing | 100% are individually tested for Hi-Pot, opens, shorts and pinout. |
| Certifications | UL/cUL Listed |
| Environmental Compliance | RoHS, REACH, ISO9001:2015 |
| Country of Origin | Taiwan |
