6ft USA NEMA 5-15P 3-pin to C13 SJT Heavy Duty Power Cord

SKU #P-06B-SJT
When your sensitive equipment requires a heavy duty power cord; this one is a great choice. Connections include a 3 pin plug to IEC C13 and it is made of 18 gauge wire for durability. This power cord is black and six feet in length as well as UL and CSA approved.
- +

In stock

Ships Today If Ordered By 1pm PST

Purchasing this item will earn you 2 reward points (Reward point(s) $0.06) ! Applies only to registered customers, may vary when logged in.

Description

USA to C13 heavy duty power cord: NEMA 5-15P USA standard 3 pin plug plug to IEC C13 with 18/3 SJT black wire, 6 feet with UL and CSA approvals.

Specifications
Male Plug NEMA 5-15P (molded with 35P PVC)
Female Receptacle IEC60320 C13 (molded with 35P PVC)
Wire Jacket Standard SJT
Gauge 18 AWG
Conductors 3 Wire
copper wire stranding 41 strands of 0.16mm
Jacket Material PVC
Temperature Rating Up to 105 C
Wire Outer Diameter 7.8 0.15mm
Conductor Color Code Black, White and Green / NACC (North American color code)
Voltage Up to 125 Volts AC
Amperage Up to 10 Amps
Cord Length 6 Feet
Color Black
Testing 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
Environmental Compliance RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008
Country of Origin China

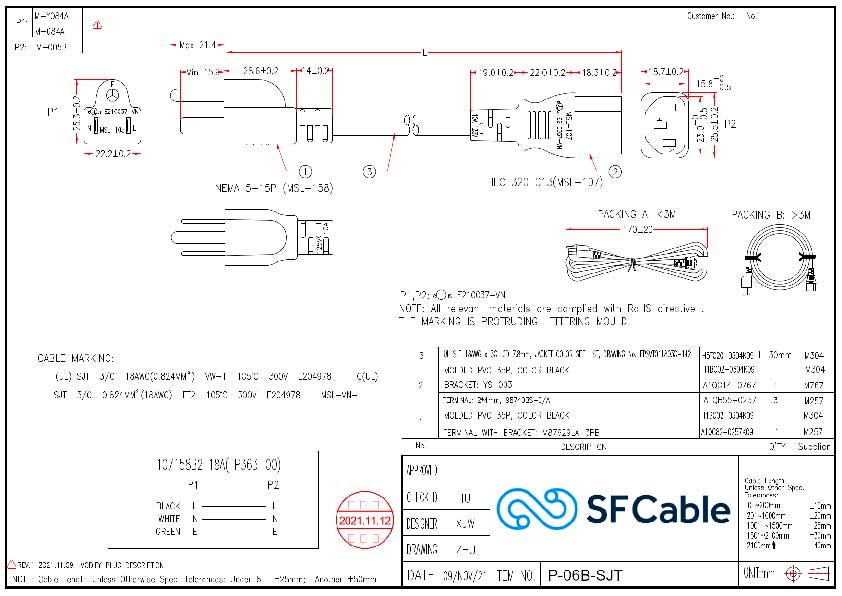

Technical Drawings

Technical Drawings

Warranty

Lifetime
