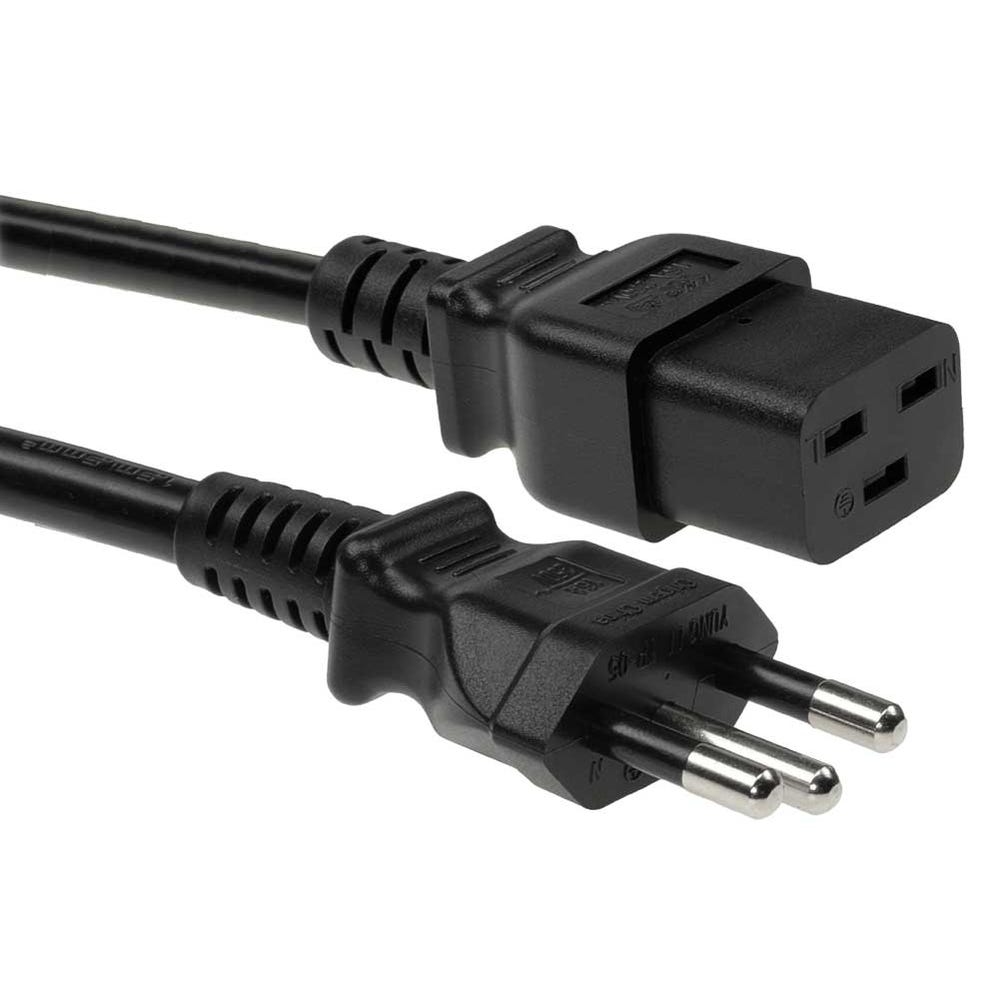

10ft Brazil NBR14136 3-pin plug to IEC C19 Power Cord

SKU
SF-0518-10B
Brazil industrial to C19 power cord. NBR14136 (aka IEC 60906-1) Brazil industrial 3P plug to IEC C19 with H05VV-F black wire. 10 feet. Rated up to 16A 250V. Brazilian INMETRO certified.
$8.56
In stock
$8.56
In stockShips today if ordered by 1pm PST
**Eligible for Free Standard Shipping On Order $50 or More. Details
Price Matched Details
    • Purchasing this item will earn you 8 reward points (Reward point(s) $0.24) !
    • Applies only to registered customers, may vary when logged in.
  • Brazil industrial to C19 power cord
  • NBR14136 (aka IEC 60906-1) Brazil industrial 3P plug to IEC C19 with H05VV-F black wire
  • 10 feet
  • Rated up to 16A 250V
  • Brazilian INMETRO certified.
Specifications
Male Plug Brazil NBR14136 AKA IEC 60906-1 Larger industrial size
Female Receptacle IEC60320 C19 (molded with 50P PVC)
Wire Jacket Standard H05VV-F
Gauge 1.5mm
Conductors 3 Wire
Copper Wire Stranding 48 strands of 0.202mm
Jacket Material PVC
Temperature Rating Up to 70C
Wire Outer Diameter 8.5mm
Conductor Color Code Blue, Brown and Green with Yellow stripe / ECC (European color code)
Voltage Up to 250 Volts AC
Amperage Up to 16 Amps
Cord Length 10 Feet
Color Black
Testing 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
Certifications Brazil INMETRO
Environmental Compliance RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008
Country of Origin China
Click Image Below for Full-Size PDF
10ft Brazil NBR14136  3-pin plug to IEC C19 Power Cord

10ft Brazil NBR14136 3-pin plug to IEC C19 Power Cord
