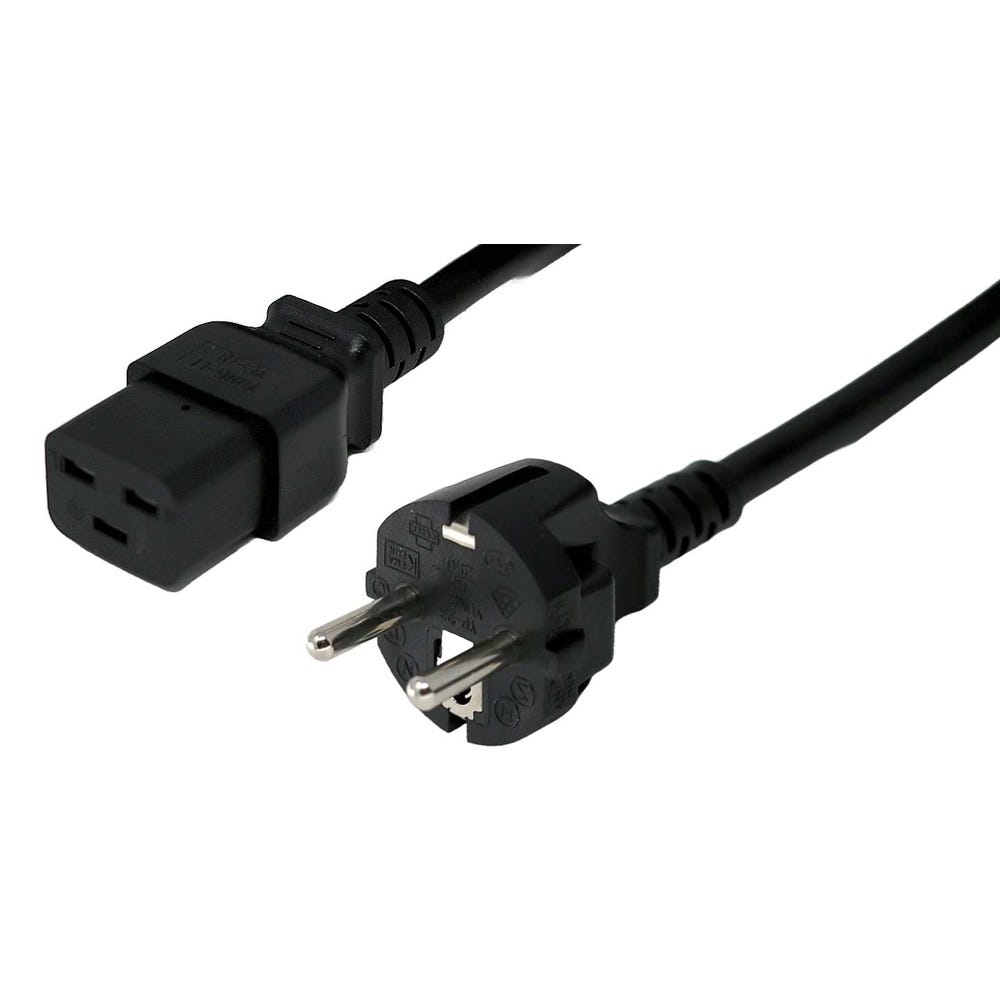

10ft Schuko CEE7/7 to C19 European Power Cord

SKU #SF-2318-10B
All European and other country approvals
Color Black
- +

In stock

Ships Today If Ordered By 1pm PST

Purchasing this item will earn you 2 reward points (Reward point(s) $0.06) ! Applies only to registered customers, may vary when logged in.

Description

  • Europe to C19 power cord
  • CEE7/7 Schuko standard European plug to IEC C19 with H05VV-F 1.5mm black wire
  • 10 feet
  • All European approvals including VDE and 11 others
  • This European power cord is also referred to as the CEE7/7 Schuko to C19 mains power lead or Schuko to C19 mains cable.
Specifications
Male Plug European Schuko CEE7/7 3P (molded with 50P PVC)
Female Receptacle IEC60320 C19 (molded with 50P PVC)
Wire Jacket Standard H05VV-F
Gauge 1.5mm
Conductors 3 Wire
Copper Wire Stranding 48 strands of 0.202mm
Jacket Material PVC
Temperature Rating Up to 70C
Wire Outer Diameter 8.5mm
Conductor Color Code Blue, Brown and Green with Yellow stripe / ECC (European color code)
Voltage Up to 250 Volts AC
Amperage Up to 16 Amps
Cord Length 10 Feet
Color Black
Testing 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
Certifications Europe VDE and many other countries
Environmental Compliance RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008
Country of Origin China

Technical Drawings

Technical Drawings

Warranty

Lifetime
