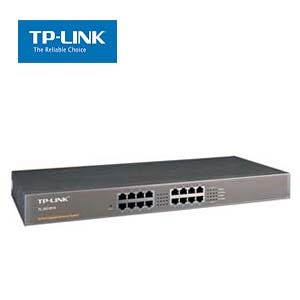

16 Port 10/100/1000Mbps Rackmount Gigabit Switch TP-Link SG1016

SKU #1023-SF-10
The SG1016 is specially designed for Ethernet (10Mbps), Fast Ethernet (100Mbps) and Gigabit Ethernet (1000Mbps) with seamless link. Each port supports up to 2000Mbps throughput in full duplex mode.
- +

In stock

Ships Today If Ordered By 1pm PST

Purchasing this item will earn you 2 reward points (Reward point(s) $0.06) ! Applies only to registered customers, may vary when logged in.

**Not Eligible for free shipping.

Description

The SG1016 is specially designed for Ethernet (10Mbps), Fast Ethernet (100Mbps) and Gigabit Ethernet (1000Mbps) with seamless link. Each port supports up to 2000Mbps throughput in full duplex mode. It is the perfect choice to improve the performance of Offices and Workgroups networks.

• All ports support Full/half duplex transfer mode for 10Mbps/100Mbps and Full duplex transfer mode for 1000Mbps
• Supports Auto-MDI/MDIX function
• Supports IEEE 802.3X flow control for full-duplex mode and back pressure flow control for half-duplex mode
• Store and forward Switching scheme

Standards and Protocols
 IEEE802.3, 802.3u, 802.3ab, 802.3x
 CSMA/CD, TCP/IP
Basic Function
 Wire-speed Performance
 MAC Address Auto-Learning and Auto-aging
 IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth
 32Gbps
MAC Address Table
 8k
Forwarding Rate
 10BASE-T: 14880pps/port
 100BASE-TX: 148800pps/port
 1000BASE-T: 1488000pps/port
Transmission Method
 Store-and-Forward
Ports
 16 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media
 EIA/TIA-568 100 ohm STP (maximum 100m)
 100Base-Tx: UTP Cat.5E cable (maximum 100m)
 EIA/TIA-568 100 ohm STP (maximum 100m)
 1000Base-T: UTP Cat.5E cable (maximum 100m)
LED Indicators
 Power, Link/Act
Safety & Emission
 FCC, CE
Dimensions (W*D*H)
 17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm)
Environment
 Operating Temperature: 0C~40C (32F~104F)
 Storage Temperature: -40C~70C (-40F~158F)
 Operating Humidity: 10%~90% non-condensing
 Storage Humidity: 5%~90% non-condensing
Power
 100-240VAC, 50/60Hz

Technical Drawings

No specification info found

Warranty

1 Year
