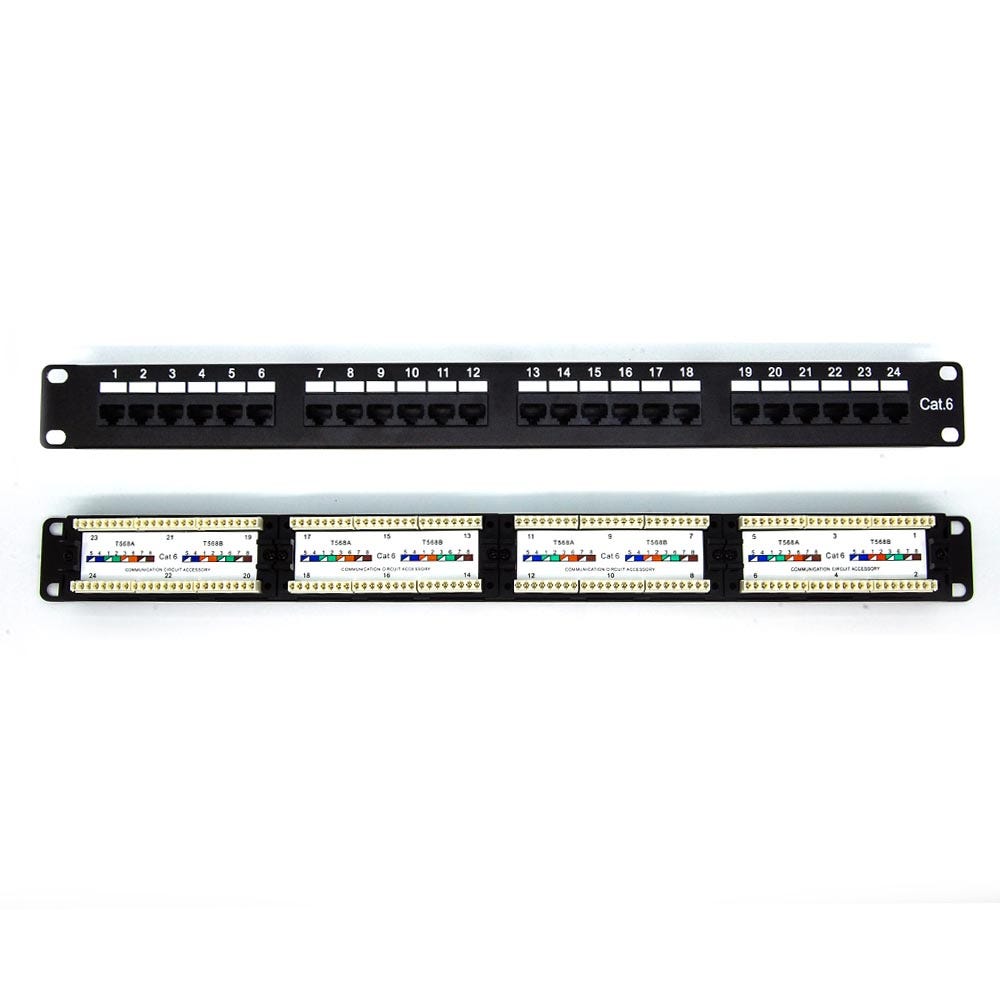

24 Port Cat6 110 Type Patch Panel Rackmount

SKU #1022-SF-08
Meets TIA/EIA-568B.2/568B.2-1 Cat.6 ISO/IEC 11801 and EN 50173-1 specification
- +

In stock

Ships Today If Ordered By 1pm PST

Purchasing this item will earn you 2 reward points (Reward point(s) $0.06) ! Applies only to registered customers, may vary when logged in.

**Not Eligible for free shipping.

Description

  • UL approved 19 inch 2U rackmount
  • Meets TIA/EIA-568B.2/568B.2-1 Cat.6 ISO/IEC 11801 and EN 50173-1 specification
  • Support T568A & B wiring
  • Wire diameter : 22 ~ 26AWG
  • Insulation diameter range : 0.70 to 1.40mm
  • Jack contacts : Phosphor bronze, 50micron gold plate over nickel plating.
  • IDC contacts : Phosphor bronze, 50micron gold plate over nickel plating.
  • Safty : UL1863
  • Flamability : UL 94 VO
  • Operating temperature : -40 to +70 dgree Celsius
  • Weight : 1.76LBS
  • Mounting Hinge: 1022-SF-16
  • 25 years warranty

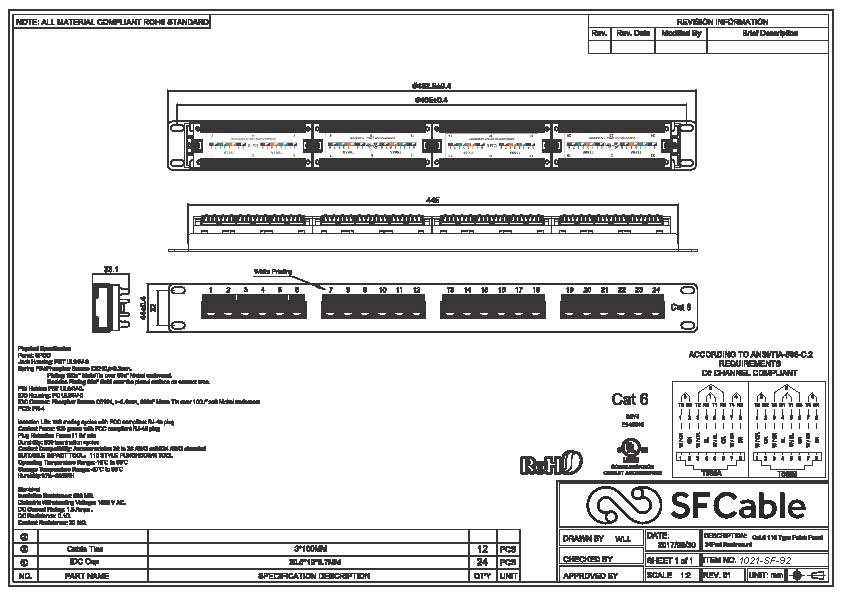

Technical Drawings

Technical Drawings

Warranty

25 Years Warranty
