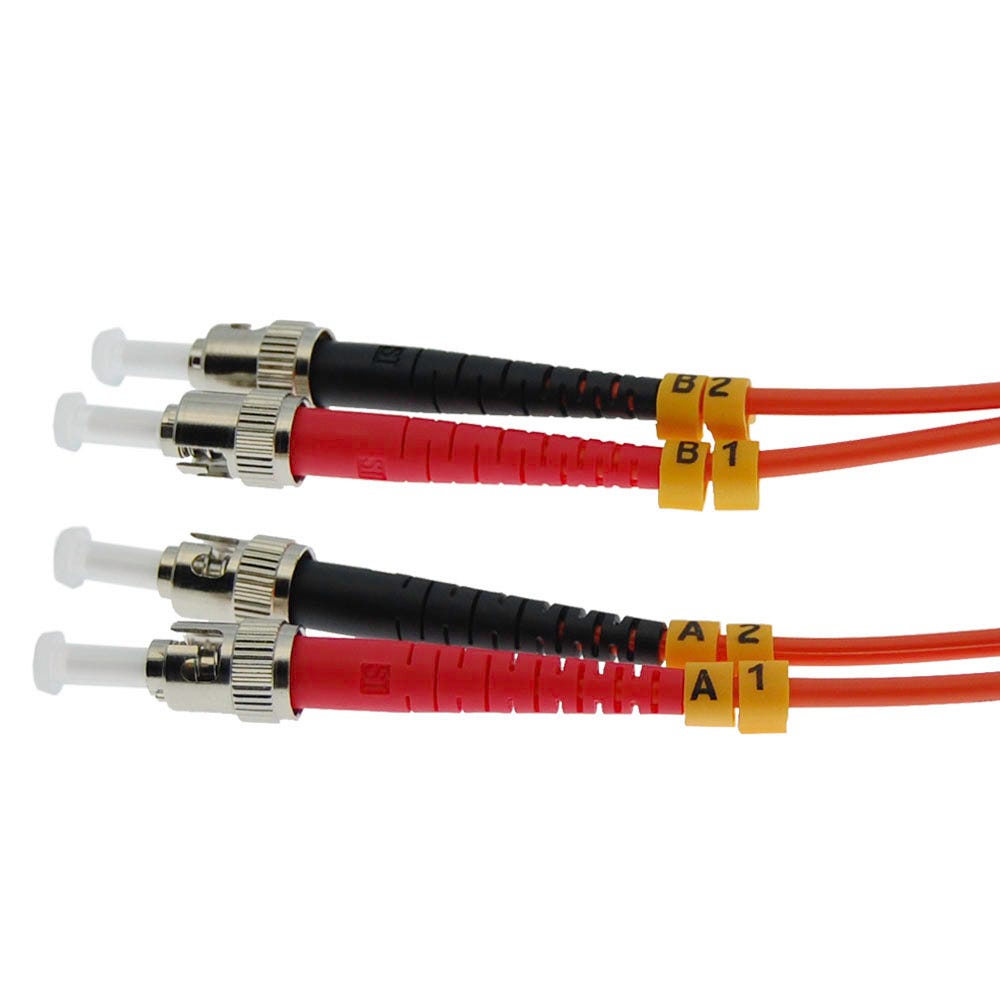

5m ST/UPC-ST/UPC OM1 Multimode Duplex ONFR Fiber Optic Patch Cable

SKU #SFC200132
mail Email to a Friend
Used to connect patch panels and/or network devices that utilize duplex ST-ST style connectors and require OM2 62.
- +

In stock

Ships Today If Ordered By 1pm PST

Purchasing this item will earn you 2 reward points (Reward point(s) $0.06) ! Applies only to registered customers, may vary when logged in.

**Eligible for Free Standard Shipping On Order $50 or More. Price Matched

FREE SHIPPING at $50 and more with code FREESHIP

To receive free ground shipping, enter the promo code in the promotion code box in your Checkout session. This offer applies to standard shipping on Internet orders only and does not apply to the out-of-stock item. FREE GROUND SHIPPING only applied if ship the lower 48 states . When selecting shipping method in the "Shipping/Payment Info" section of checkout, be sure to select the Free Ground Shipping . Free Shipping does not apply to PO Box, APO , APE, FPO, DPO, or like address. Free Shipping promotion is valid on online orders ONLY excluding phone orders, mail orders, faxed orders or purchase orders.

NOTICE:   Free shipping is non-transferable.  You MUST select UPS GROUND in order for the free shipping to apply. We will not honor the "FREE GROUND SHIPPING" if you did not select it during checkout process. Free shipping will be deducted at the last Checkout page before final checkout confirmation. Free ground shipping is applicable to orders at least $50.00 (excluding taxes and handling charge) to all lower 48 states only.


*** Free Shipping doesn't apply to Bulk Products or Cables, some products on Networking, Networking Racks, Floorstand Racks, Wallmount Rack, Workstations, and UPS Backup. See the full products list for Ineligible Products for free shipping.


*** Only 1 coupon code can be redeemed per order ***

*** Each promotional code cannot be combined with any other offers***


To Start Shopping, Click Here.

SF Cable is constantly researching similar items from other retailers for lower prices.
We will do our best to price match and offer the most competitive pricing to our customers.

For more information or to request a price match.
Please contact us at customerservice@sfcable.com or call 1-888-275-8755

Description

• Used to connect patch panels and/or network devices that utilize duplex ST-ST style connectors and require OM2 62.5/125 multimode cabling
• Ceramic ferrules provide precise alignment
• Integrated clip ensures correct A/B orientation
• Connectors utilize a UPC polish

  • Connector Type: ST-ST Multimode
  • Polishing: UPC
  • Return Loss: 35 dB
  • Insertion Loss: 0.2 dB (typical)
  • Ferrule Material: Ceramic (zirconia)
  • Ferrule Diameter: 1.25 mm / 2.5 mm
  • Cabled Optical Fiber: OM1
  • Nominal Diameter Core: 62.5/125 μm
  • Jacket Material: OFNR
  • Temperature Range: -20°C +70°C

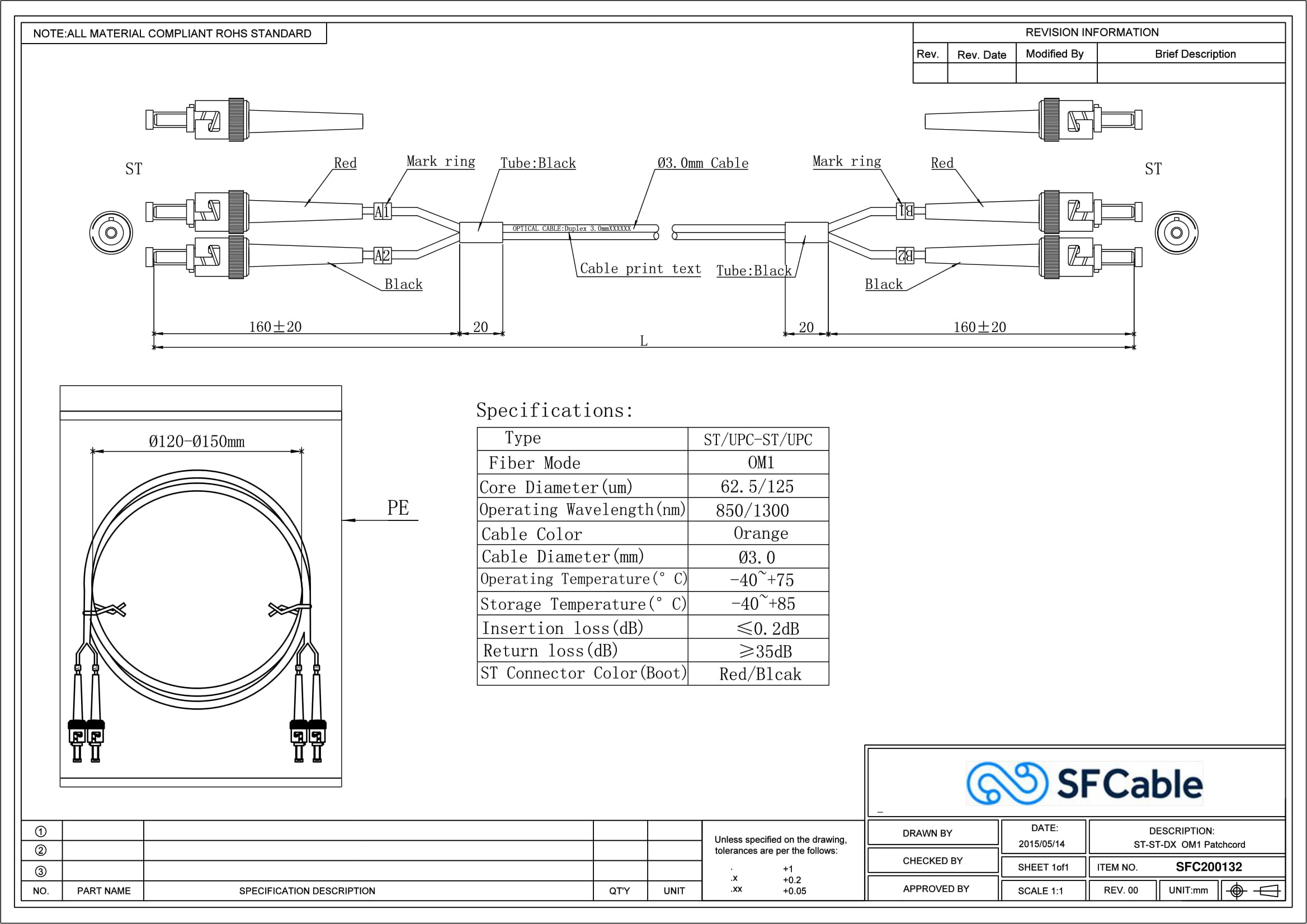

Technical Drawings

Technical Drawings
