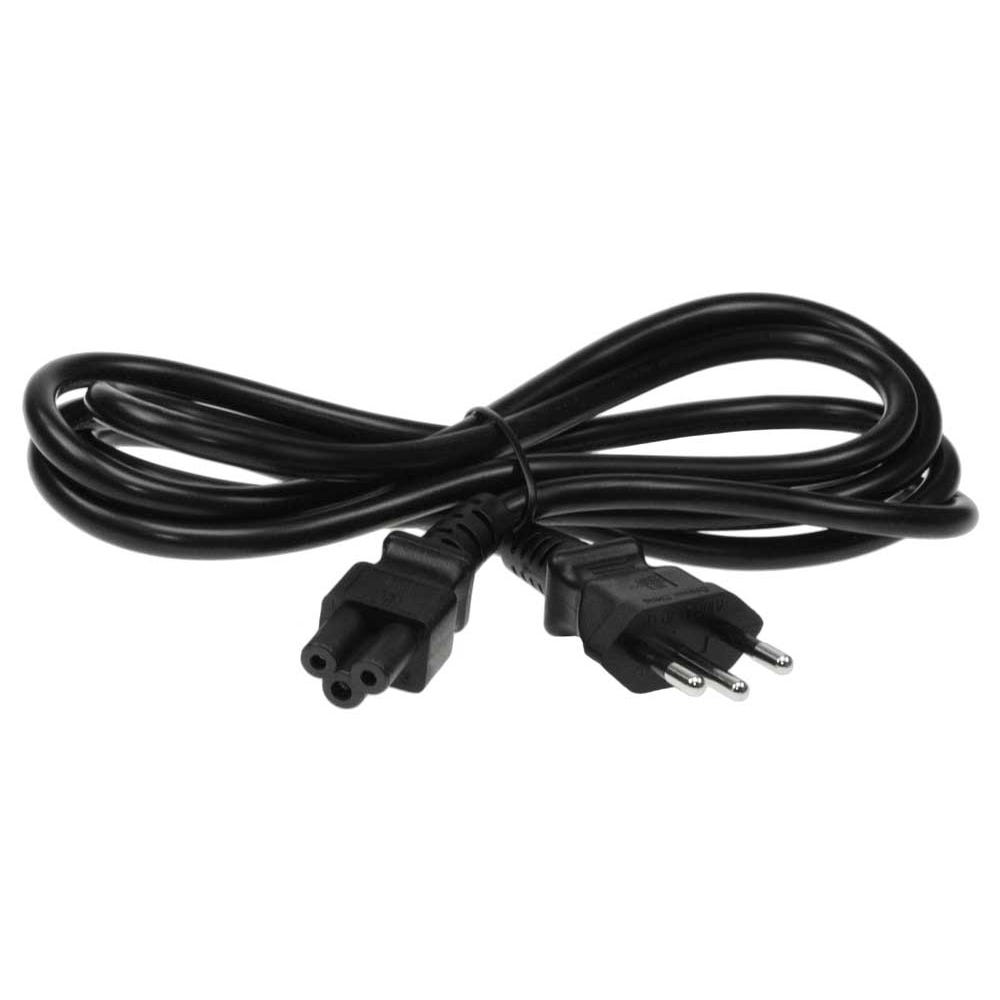

6ft Brazil 3P plug to IEC C5 Power Cord

SKU
P-0414-06B
If you are looking for a Laptop Power Cord; this black; 6 feet long cord is a good selection. Made for users in Brazil; this power cord for laptops features the standard 3P plug to IEC C5 connections and is rated up to 10 amps; 250 volts and 70deg Celsius.
$3.68
In stock
$3.68
In stockShips today if ordered by 1pm PST
**Eligible for Free Standard Shipping On Order $50 or More. Details
Price Matched Details
    • Purchasing this item will earn you 3 reward points (Reward point(s) $0.09) !
    • Applies only to registered customers, may vary when logged in.

Brazil to C5 power cord: NBR14136 (aka IEC 60906-1) Brazil 3P plug to IEC C5 with H05VV-F 0.75mm black wire, 6 feet. Brazil laptop power cord.

Specifications
Male Plug Brazil standard NBR14136 but also known as IEC standard 60906-1 (molded with 50P PVC)
Female Receptacle IEC60320 C5 (molded with 50P PVC)
Wire Jacket Standard H05VV-F
Gauge 0.75mm
Conductors 3 Wire
copper wire stranding 24 strands of 0.2 x 0.0141mm
Jacket Material PVC
Temperature Rating Up to 70°C
Wire Outer Diameter 6.7 x 0.15mm
Conductor Color Code Blue, Brown and Green with Yellow stripe / ECC (European color code)
Voltage Up to 250 Volts AC
Amperage Up to 2.5 Amps
Cord Length 6 Feet
Color Black
Testing 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
Certifications Brazil INMETRO
Environmental Compliance RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008
Country of Origin China
Click Image Below for Full-Size PDF
6ft Brazil 3P plug to IEC C5 Power Cord

6ft Brazil 3P plug to IEC C5 Power Cord
