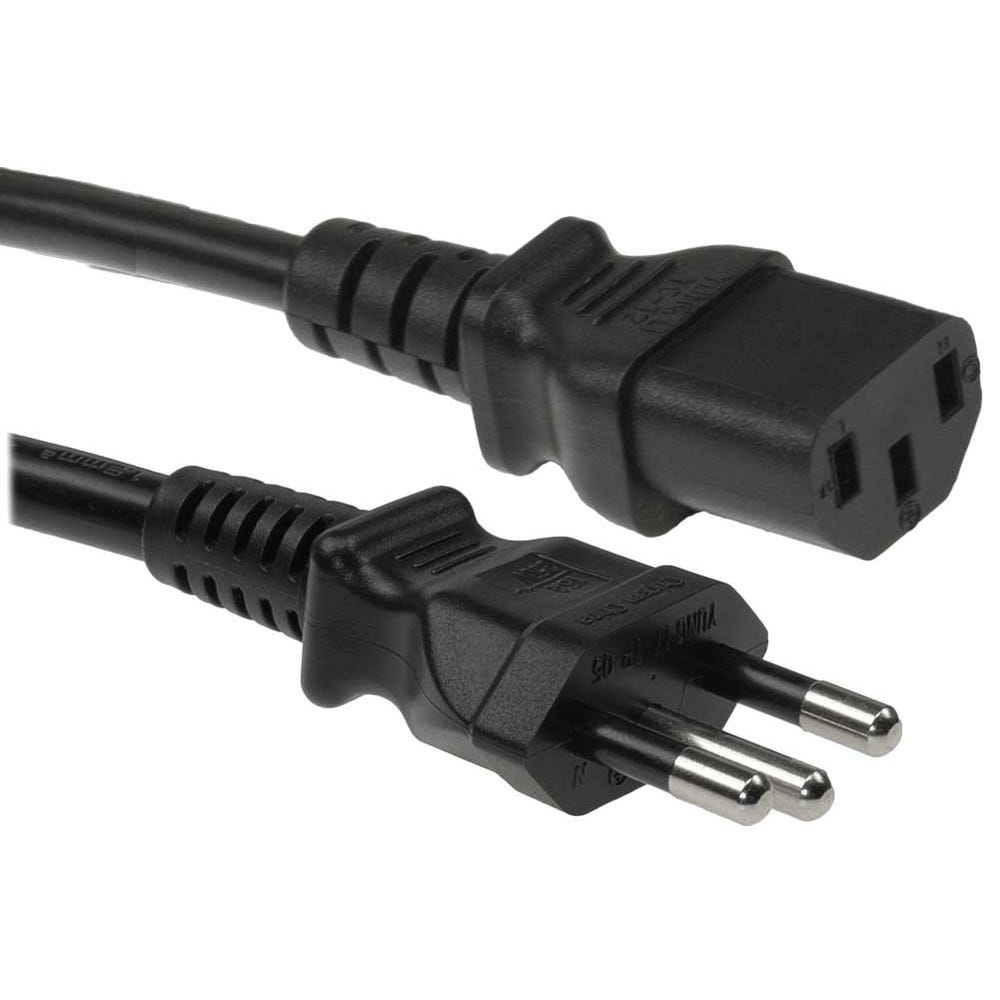

6ft Brazil Industrial 3P plug to C13 Power Cord

If your equipment requires a Power Cord with a 3P plug to IEC C13 connection; this model fits the bill. Made for use in Brazil; our industrial strength power cord is rated up to 16 amps and 250 volts and is INMETRO certified.
In stock
In stockShips today if ordered by 1pm PST
**Eligible for Free Standard Shipping On Order $50 or More. Details
Price Matched Details
    • Purchasing this item will earn you 5 reward points (Reward point(s) $0.15) !
    • Applies only to registered customers, may vary when logged in.

Brazil industrial to C13 power cord: NBR14136 (aka IEC 60906-1) Brazil industrial 3P plug to IEC C13 with H05VV-F black wire, 6 feet. Rated up to 16A 250V and Brazilian INMETRO certified.

Male Plug Brazil standard NBR14136 but also known as IEC standard 60906-1 (molded with 50P PVC) Note: larger industrial plug
Female Receptacle IEC60320 C13 (molded with 50P PVC)
Wire Jacket Standard H05VV-F
Gauge 1.5mm
Conductors 3 Wire
copper wire stranding 48 stands of 0.202x0.01mm
Jacket Material PVC
Temperature Rating Up to 70°C
Wire Outer Diameter 8.5 x 0.15mm
Conductor Color Code Blue, Brown and Green with Yellow stripe / ECC (European color code)
Voltage Up to 250 Volts AC
Amperage Up to 15 Amps
Cord Length 6 Feet
Color Black
Testing 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
Certifications Brazil INMETRO
Environmental Compliance RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008
Country of Origin China
Click Image Below for Full-Size PDF
