6ft C7 to C8 USA with 18/2 SPT-2 Power Cord
SKU
P-ZIP-06B-EXT
USA IEC C7 to IEC C8. Category: American 2 Prong Extension Cord. Standard: IEC 60320-C7 to IEC 60320-C8. 18/2 SPT-2 black wire Rated up to 10A 125V. Length 6FT
$3.06
In stock
C8 to C7 power cord: IEC C8 to IEC C7 with 18/2 SPT-2 wire black power cord 6 feet long with cUL approval.
| Specifications | |
| Male Plug | IEC60320 C8 (molded with 35P PVC) |
| Female Receptacle | IEC60320 C7 (molded with 35P PVC) |
| Wire Jacket Standard | SPT-2 |
| Gauge | 18 AWG |
| Conductors | 2 Wire |
| copper wire stranding | 41 strands of 0.16mm |
| Jacket Material | PVC |
| Temperature Rating | Up to 105 C |
| Wire Outer Diameter | 6.8 X 0.2 by 3.4 X 0.1mm (Two dimensions because this is not round wire) |
| Conductor Color Code | ribbed side and smooth side |
| Voltage | Up to 125 Volts AC |
| Amperage | Up to 10 Amps |
| Cord Length | 6 Feet |
| Color | Black |
| Testing | 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout. |
| Certifications | UL/cUL Listed |
| Environmental Compliance | RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008 |
| Country of Origin | China |
IEC C7
UL and CSA certified 2 prong IEC C7 power cord receptacle. Built to the IEC 60320-C7 standard. Rated up to 10A 125V. Our IEC C7 power cord receptacles are fully molded with a low profile ergonomic design and RoHS and REACH compliant.
IEC C8
UL and CSA certified 2 prong IEC C8 power cord plug. Built to the IEC 60320-C8 standard. Rated up to 10A 125V. Our IEC C8 plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

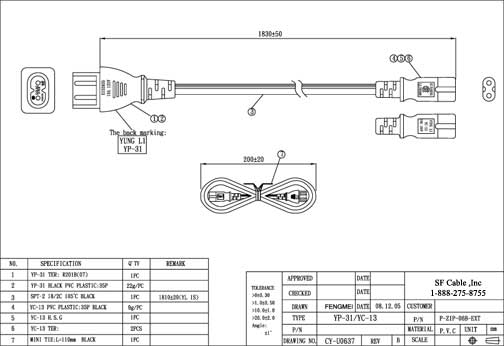

Click Image Below for Full-Size PDF
6ft C7 to C8 USA with 18/2 SPT-2 Power Cord
