6ft China 3pin Plug to IEC C5 Power Cord

SKU #P-0314-06B
At 6 feet long; this black power cord for users in China provides extra reach for PCs; peripherals and other electronics requiring a 3 pin plug to IEC C5 connection. The power cord is China CCC approved and is rated up to 10 amps 250V.
- +

In stock

Ships Today If Ordered By 1pm PST

Purchasing this item will earn you 2 reward points (Reward point(s) $0.06) ! Applies only to registered customers, may vary when logged in.

Description

China to C5 power cord: GB2099 standard China 3 pin plug to IEC C5 with RVV - H05VV-F black wire, 6 feet. Rated up to 2.5amps 250V with China CCC approval..

Specifications
Male Plug GB2099 China 3P (molded with 50P PVC)
Female Receptacle IEC60320 C5 (molded with 50P PVC)
Wire Jacket Standard H05VV-F + RVV 300/500
Gauge 0.75mm
Conductors 3 Wire
copper wire stranding 24 strands of 0.2 0.0141mm
Jacket Material PVC
Temperature Rating Up to 70 C
Wire Outer Diameter 6.7 0.15mm
Conductor Color Code Blue, Brown and Green with Yellow stripe / ECC (European color code)
Voltage Up to 250 Volts AC
Amperage Up to 2.5 Amps
Cord Length 6 Feet
Color Black
Testing 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
Certifications China CCC
Environmental Compliance RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008
Country of Origin China

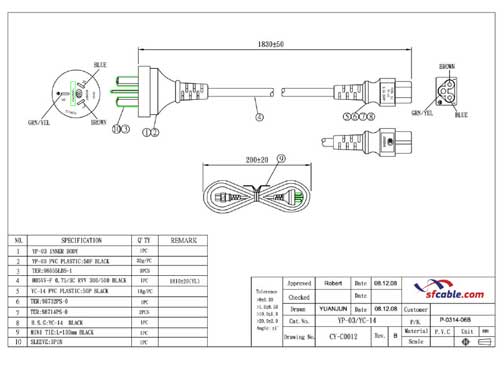

Technical Drawings

Technical Drawings

Warranty

Lifetime
