Description
Japan to C5 power cord: JIS C 8303 Japan standard 3 pin plug to IEC C5 with VCTF 0.75mm black wire, 6 feet with Japanese PSE approval.
| Specifications | |
| Male Plug | Japan JIS C 8303 3P which is just like the NEMA 5-15P (molded with 50P PVC) |
| Female Receptacle | IEC60320 C5 (molded with 50P PVC) |
| Wire Jacket Standard | VCTF |
| Gauge | 0.75mm |
| Conductors | 3 Wire |
| copper wire stranding | 30 strands of 0.18mm 0.008mm |
| Jacket Material | PVC |
| Temperature Rating | 60 C |
| Wire Outer Diameter | 7.0 0.15mm |
| Conductor Color Code | Blue, Brown and Green with Yellow stripe / ECC (European color code) |
| Voltage | Up to 125 Volts AC |
| Amperage | Up to 7 Amps |
| Cord Length | 6 Feet |
| Color | Black |
| Testing | 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout. |
| Certifications | Japan PSE |
| Environmental Compliance | RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008 |
| Country of Origin | China |

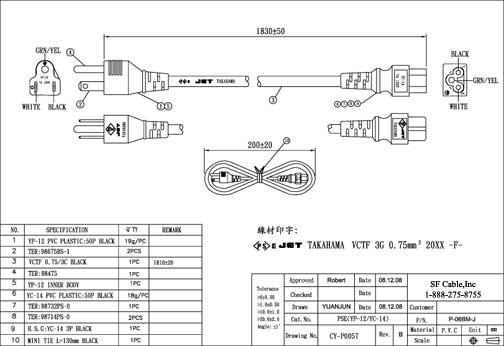

Technical Drawings
