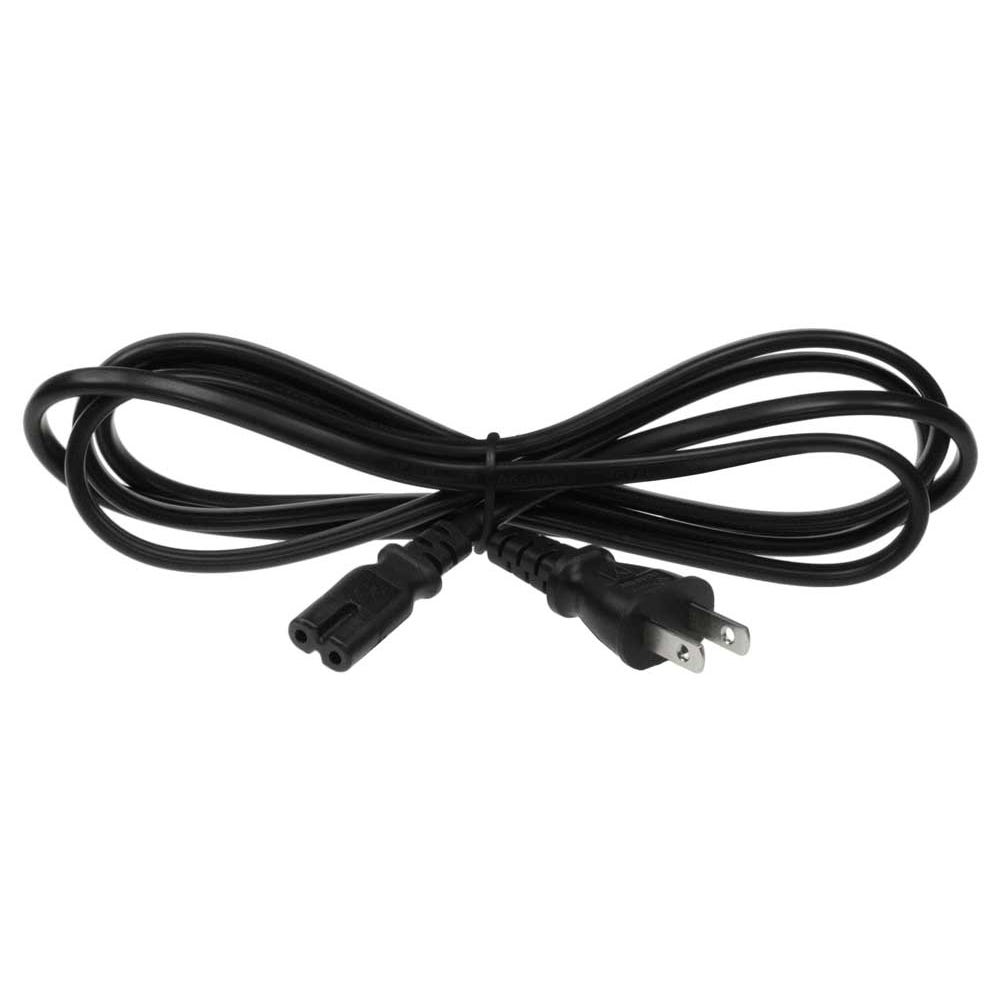

6ft Japan NEMA 1-15P 2-pin to C7 Power Cord

SKU #P-ZIP-06B-J
Japan 2 pin (JIS C 8303) to C7 with VFF 0.75mm_; 6 feet . Japan 2 Prong . Item Number: P-ZIP-06B-J . Standard: JIS 8303 to IEC 60320-C7.
- +

In stock

Ships Today If Ordered By 1pm PST

Purchasing this item will earn you 2 reward points (Reward point(s) $0.06) ! Applies only to registered customers, may vary when logged in.

Description

Japan to C7 power cord: JIS C 8303 standard Japan 2 pin plug to IEC C7 with VFF 0.75mm wire black power cord, 6 feet with Japan PSE approval.

Specifications
Male Plug Japan JIS C 8303 2P (molded with 50P PVC)
Female Receptacle IEC60320 C7 (molded with 50P PVC)
Wire Jacket Standard VCTFK
Gauge 0.75mm
Conductors 2 Wire
copper wire stranding 30 strands of 0.18mm x 0.008
Jacket Material PVC
Temperature Rating Up to 60 C
Wire Outer Diameter 4.35 x 0.1mm by 6.6 x 0.2mm (Two dimensions because this is not round wire)
Conductor Color Code Black, White
Voltage Up to 125 Volts AC
Amperage Up to 7 Amps
Cord Length 6 Feet
Color Black
Testing 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
Certifications Japan PSE
Environmental Compliance RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008
Country of Origin China

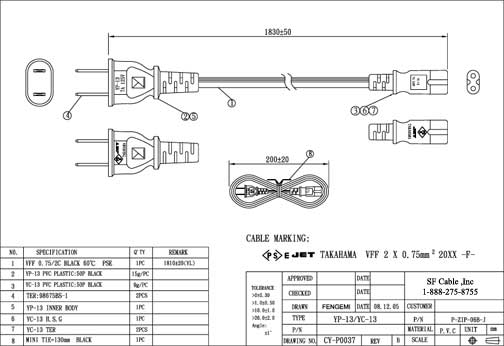

Technical Drawings

Technical Drawings

Warranty

Lifetime
