6ft NEMA 1-15P to IEC 60320 C7 polarized Power Cord

SKU # P-11W13W-06B

6ft NEMA 1-15P to IEC 60320 C7 polarized Power Cord

This heavy duty Power Cord is polarized for safety with a USA 2 pin plug end and a C7 figure 8 receptacle. It is made from 18 gauge wire for long lasting wear; 6 feet long; rated to 10A 125V and UL approved.
    • Purchasing this item will earn you 2 reward points (Reward point(s) $0.06) !
    • Applies only to registered customers, may vary when logged in.

60 days money back guarantee

Lifetime warranty on all cables and Non-Electronics products

**Eligible for free shipping on order $50. Details
$2.25

In stock

**Eligible for free shipping on order $50. Details
Description

Details

    Polarized USA to C7 power cord: NEMA 1-15P USA polarized 2 pin plug to polarized C7 figure 8 receptacle with 18/2 SPT-2 black wire power cord. Rated up to 10A 125V, 6 feet long and cUL approved.

    Specifications
    Male PlugNEMA 1-15P polarized plug (molded with 35P PVC)
    Female ReceptacleIEC60320 C7 polarized receptacle (molded with 35P PVC)
    Wire Jacket StandardSPT-2
    Gauge18 AWG
    Conductors2 Wire
    copper wire stranding41 strands of 0.16mm
    Jacket MaterialPVC
    Temperature RatingUp to 60C
    Wire Outer Diameter6.8 x 0.2 by 3.4 x 0.1mm (Two dimensions because this is not round wire)
    Conductor Color Coderibbed side and smooth side
    VoltageUp to 125 Volts AC
    AmperageUp to 10 Amps
    Cord Length6 Feet
    ColorBlack
    Testing100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
    CertificationsUL/cUL Listed, CSA
    Environmental ComplianceRoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008
    Country of OriginChina

    Polarized IEC C7
    UL and CSA certified 2 prong polarized IEC C7 receptacle.  Built to the IEC 60320-C7 polarized receptacle standard.  Rated up to 10A 125V.  Our IEC C7 polarized receptacles are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

    Polarized NEMA 1-15P
    UL and CSA certified 2 prong USA 1-15P polarized plug.  Designed to the polarized NEMA 1-15P standard.  Rated up to 10A 125V.  Our NEMA 1-15 polarized plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

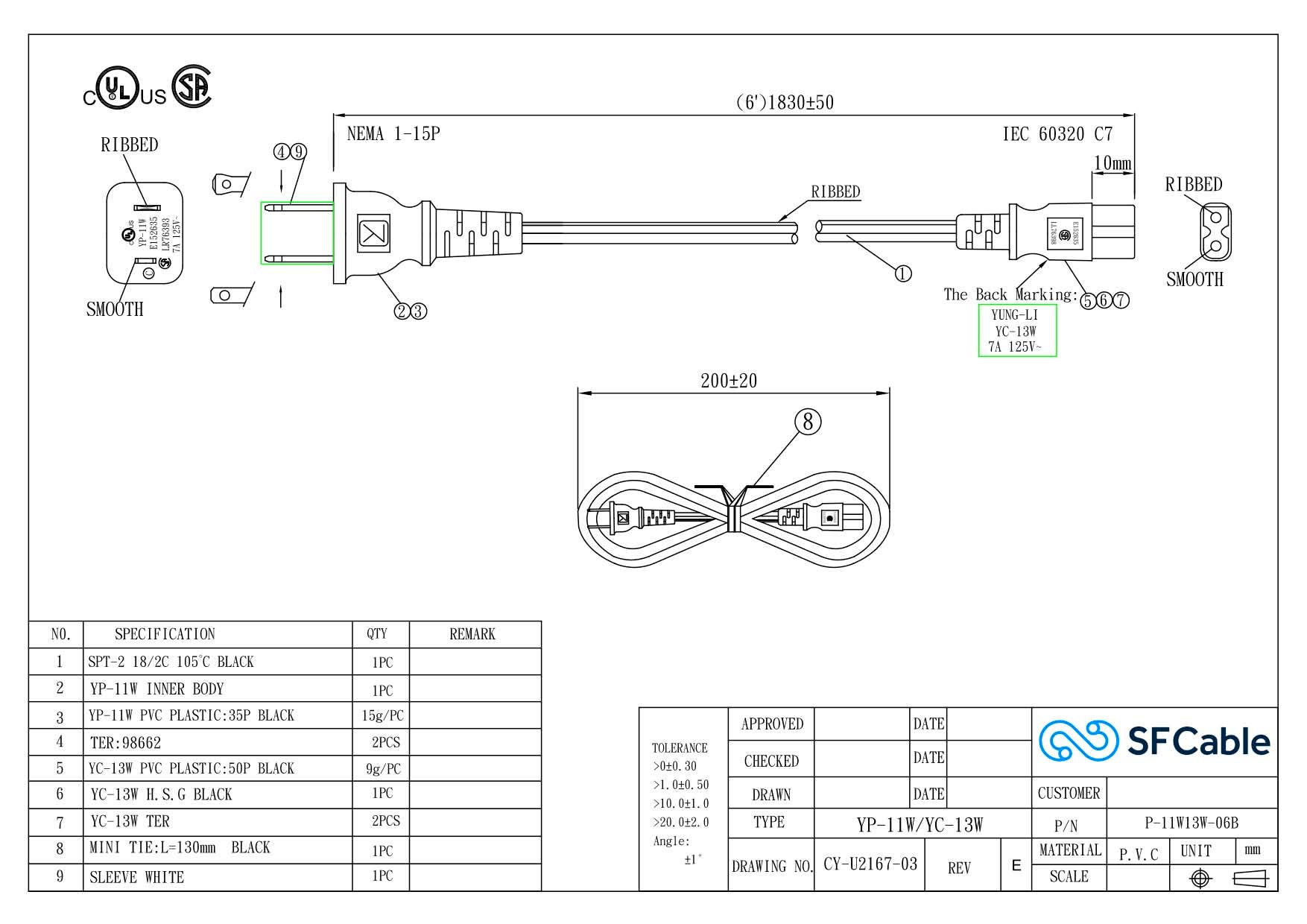

Technical Drawing
Click Image Below for Full-Size PDF
6ft NEMA 1-15P to IEC 60320 C7 polarized Power Cord
