6ft USA NEMA 1-15P 2-pin to C7 Power Cord with 18/2 SPT-2

SKU #P-ZIP-06-EN
USA 2 pin NEMA 1-15P to IEC C7 figure 8 receptacle. Category: American 2 Prong. 18/2 SPT-2 black wire. Rated up to 10A 125V. Length 6FT.
- +

In stock

Ships Today If Ordered By 1pm PST

Purchasing this item will earn you 2 reward points (Reward point(s) $0.06) ! Applies only to registered customers, may vary when logged in.

Description

  • Connectors: USA 2 pin NEMA 1-15P to IEC C7 figure 8 receptacle
  • Category: American 2 Prong
  • 18/2 SPT-2 black wire.
  • Rated up to 10A 125V
  • Length 6FT
Specification
Male Plug: NEMA 1-15P 2P (molded with 35P PVC)
Female Receptacle: IEC60320 C7 (molded with 35P PVC)
Wire Jacket Standard: SPT-2
Gauge: 18 AWG
Conductors: 2 Wire
Copper Wire Stranding: 41 strands of 0.16mm
Jacket Material: PVC
Temperature Rating: Up to 105 C
Wire Outer Diameter: 6.8 0.2 by 3.4 0.1mm (Two dimensions because this is not round wire)
Conductor Color Code: ribbed side and smooth side
Voltage: Up to 125 Volts AC
Amperage: Up to 10 Amps
Cord Length: 6 Feet
Color: Black
Testing: 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
Environmental Compliance: RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008
Country of Origin: China

IEC C7
2 prong IEC C7 power cord receptacle. Built to the IEC 60320-C7 standard. Rated up to 10A 125V. Our IEC C7 power cord receptacles are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

NEMA 1-15P
USA 2 prong NEMA 1-15P power cord plug. Built to NEMA 1-15P standards. Rated up to 15A 125V, 13A 125V or 10A 125V. Our NEMA 1-15P plugs are fully molded with a low profile ergonomic design and come in a big variety or orientations, sizes and angles.

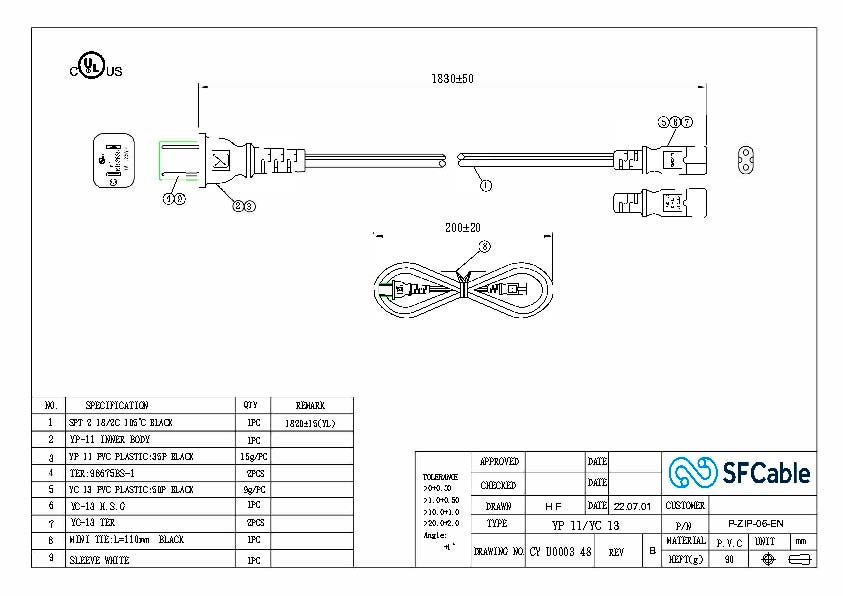

Technical Drawings

Technical Drawings

Warranty

Lifetime
