8ft NEMA L5-20P USA 3-pin Plug to C13 SJT Power Cord

SKU #SF-5612-08B
NEMA L5-20P to C13 8 foot power cord. NEMA L5-20P to IEC C13 with 14/3 SJT black wire. 8 feet. cUL approval. Rated up to 15A 125V.
- +

In stock

Ships Today If Ordered By 1pm PST

Purchasing this item will earn you 2 reward points (Reward point(s) $0.06) ! Applies only to registered customers, may vary when logged in.

Description

  • NEMA L5-20P to C13 8 foot power cord
  • NEMA L5-20P to IEC C13 with 14/3 SJT black wire
  • 8 feet
  • cUL approval.
  • Rated up to 15A 125V.

Specifications

Male Plug NEMA L5-20P locking (molded with 35P PVC)
Female Receptacle IEC60320 C13 (molded with 35P PVC)
Wire Jacket Standard SJT
Gauge 14 AWG
Conductors 3 wires
Copper Wire Stranding 41 strands of 0.254mm
Jacket Material PVC
Temperature Rating Up to 105°C
Wire Outer Diameter 9.3mm
Conductor Color Code Black, White and Green: NACC (North American color code)
Voltage Up to 125 Volts AC
Amperage Up to 15 amps
Cord Length 8 feet
Color Black
Testing 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
Environmental Compliance RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008
Country of Origin China

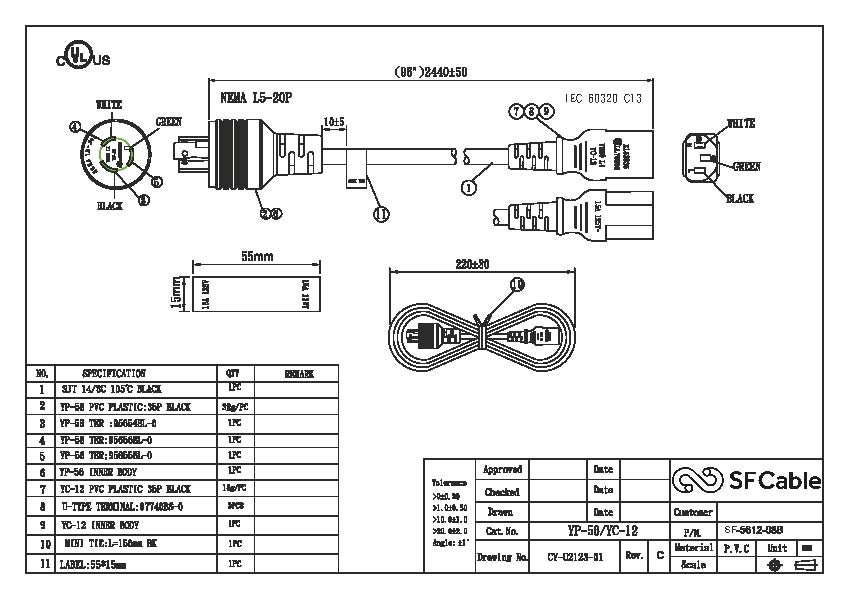

Technical Drawings

Technical Drawings

Warranty

Lifetime
