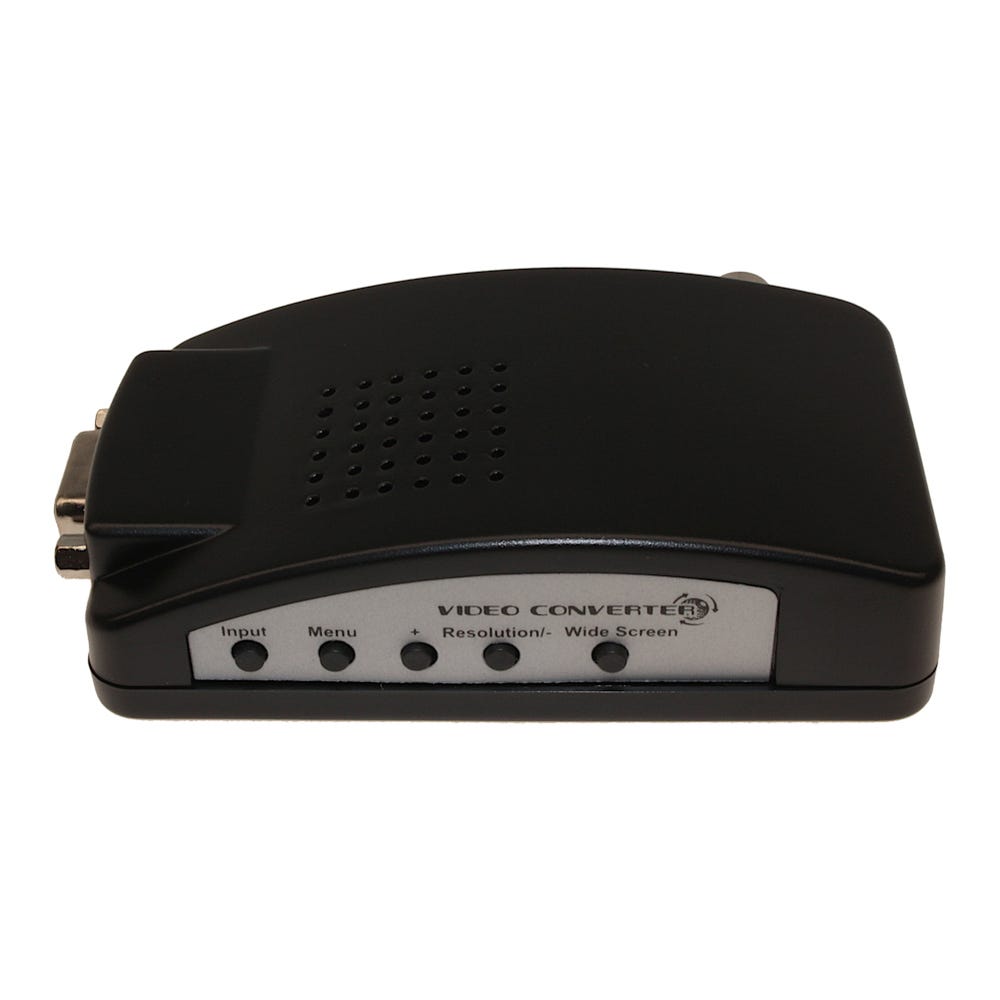

BNC/S-Video to VGA Converter

SKU #VCL-300VH
mail Email to a Friend
Supports Normal 4:3 and 16:9 / 16:10 Wide Screen! Up to 1680x1050! VCL-300VH can convert the source signals of CVBS, Video and S-Video into VGA signal. UTP-VCL-300VH P.I.C.: B-28 VCL-300VH can convert the source signals of CVBS, Video and S-Video into VGA signal. With adoption of advanced video straight-through technology, the source signals of BNC, AV and S-Video can be converted into VGA signal without any data loss. What is more, the parameters of the program source such as brightness and contrast are adjustable. This video converter supports both normal 4:3 screen and 16:9 / 16:10 wide screen with output VGA resolution up to 1680x1050. It is suitable for connection of CCTV CCD cameras, DVRs, to PC monitor. 3-D video-processing tech is applied. The converted picture is rich in color and outputs at high definition without any distortion. The output video quality is better than the direct VGA output from DVR. It also supports plug-and-play; no driver program installation needed. Composite Video Input Interface: BNC Inputs: 1x Composite Video, 1x S-Video and 1x VGA Output: 1x VGA BNC/S-Video to VGA Converter Switch between the 3 inputs to output any one of them to VGA VGA input is pass through to the VGA output without any processing Both NTSC & PAL are supported VGA Resolution: 800x600 @ 60Hz, 800x600 @ 75Hz, 1024x768 @ 60Hz, 1280x720 @ 60Hz, 1280x1024 @ 60Hz, 1440x900 @ 60Hz,1600x900 @ 60Hz, 1680x1050 @ 60Hz 5V DC, 1000mA Catalog: VCL-300VH

Out of stock

Purchasing this item will earn you 2 reward points (Reward point(s) $0.06) ! Applies only to registered customers, may vary when logged in.

**Eligible for Free Standard Shipping On Order $50 or More. Price Matched

FREE SHIPPING at $50 and more with code FREESHIP

To receive free ground shipping, enter the promo code in the promotion code box in your Checkout session. This offer applies to standard shipping on Internet orders only and does not apply to the out-of-stock item. FREE GROUND SHIPPING only applied if ship the lower 48 states . When selecting shipping method in the "Shipping/Payment Info" section of checkout, be sure to select the Free Ground Shipping . Free Shipping does not apply to PO Box, APO , APE, FPO, DPO, or like address. Free Shipping promotion is valid on online orders ONLY excluding phone orders, mail orders, faxed orders or purchase orders.

NOTICE:   Free shipping is non-transferable.  You MUST select UPS GROUND in order for the free shipping to apply. We will not honor the "FREE GROUND SHIPPING" if you did not select it during checkout process. Free shipping will be deducted at the last Checkout page before final checkout confirmation. Free ground shipping is applicable to orders at least $50.00 (excluding taxes and handling charge) to all lower 48 states only.


*** Free Shipping doesn't apply to Bulk Products or Cables, some products on Networking, Networking Racks, Floorstand Racks, Wallmount Rack, Workstations, and UPS Backup. See the full products list for Ineligible Products for free shipping.


*** Only 1 coupon code can be redeemed per order ***

*** Each promotional code cannot be combined with any other offers***


To Start Shopping, Click Here.

SF Cable is constantly researching similar items from other retailers for lower prices.
We will do our best to price match and offer the most competitive pricing to our customers.

For more information or to request a price match.
Please contact us at customerservice@sfcable.com or call 1-888-275-8755

Description

Supports Normal 4:3 and 16:9 / 16:10 Wide Screen! Up to 1680x1050!

VCL-300VH can convert the source signals of CVBS, Video and S-Video into VGA signal.

  • UTP-VCL-300VH
    P.I.C.: B-28

    VCL-300VH can convert the source signals of CVBS, Video and S-Video into VGA signal. With adoption of advanced video straight-through technology, the source signals of BNC, AV and S-Video can be converted into VGA signal without any data loss. What is more, the parameters of the program source such as brightness and contrast are adjustable. This video converter supports both normal 4:3 screen and 16:9 / 16:10 wide screen with output VGA resolution up to 1680x1050. It is suitable for connection of CCTV CCD cameras, DVRs, to PC monitor. 3-D video-processing tech is applied. The converted picture is rich in color and outputs at high definition without any distortion. The output video quality is better than the direct VGA output from DVR. It also supports plug-and-play; no driver program installation needed.
  • Composite Video Input Interface: BNC
  • Inputs: 1x Composite Video, 1x S-Video and 1x VGA
  • Output: 1x VGA
  • BNC/S-Video to VGA Converter
  • Switch between the 3 inputs to output any one of them to VGA
  • VGA input is pass through to the VGA output without any processing
  • Both NTSC & PAL are supported
  • VGA Resolution: 800x600 @ 60Hz, 800x600 @ 75Hz, 1024x768 @ 60Hz, 1280x720 @ 60Hz, 1280x1024 @ 60Hz, 1440x900 @ 60Hz,1600x900 @ 60Hz, 1680x1050 @ 60Hz
  • 5V DC, 1000mA
  • Catalog: VCL-300VH

Technical Drawings

Technical Drawings

Warranty

1 Year
