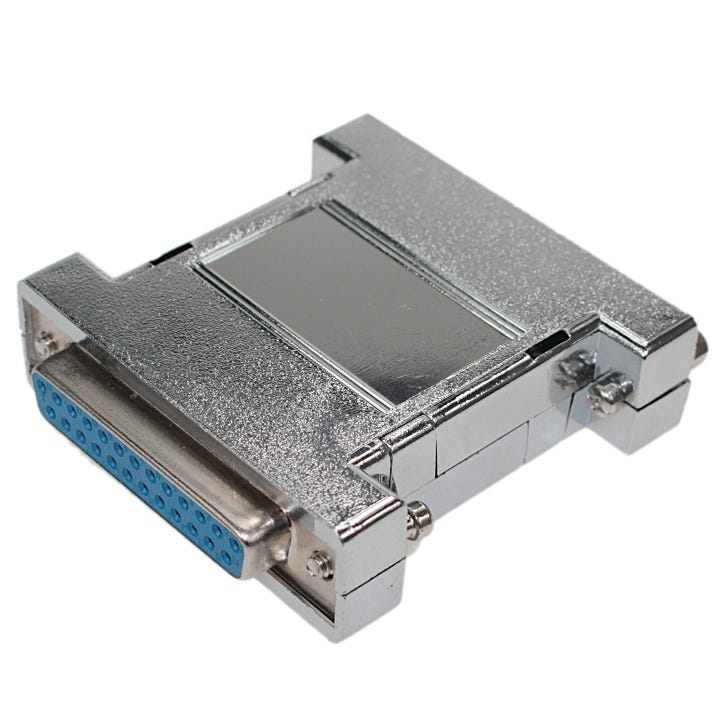

DB25 Female to Female Null Modem Shielded Adapter

Connects any RS232 serial device with DTE DB25 to PC with DB25 serial port. This null modem adaptor also allows you to transfer files between two computers using its DB25 serial port along with a DB25 straight thru cable as well as all RS232 DTE to DTE connections. The added shielding provides data protection against EMI/RFI. Works with file transfer software that comes free with MS DOS & Windows and Laplink software. PinOut: 1-1 / 2-3 / 3-2 / 5,6,8-20 / 7-7 / 20 - 5,6,8 / G-G. (Connectors: DB25 Female to Female)
- +

In stock

Ships Today If Ordered By 1pm PST

Purchasing this item will earn you 2 reward points (Reward point(s) $0.06) ! Applies only to registered customers, may vary when logged in.


  • Connectors: 2 x DB25 Female
  • Type: Null Modem Adapter
  • Convert your existing cable into null modem (cross-over) cable.
  • Protection against EMI/RFI

Technical Drawings

No specification info found
