DisplayPort 1.4 Cable With Latch VESA Certified

SKU #SF-DPDP-V4
mail Email to a Friend

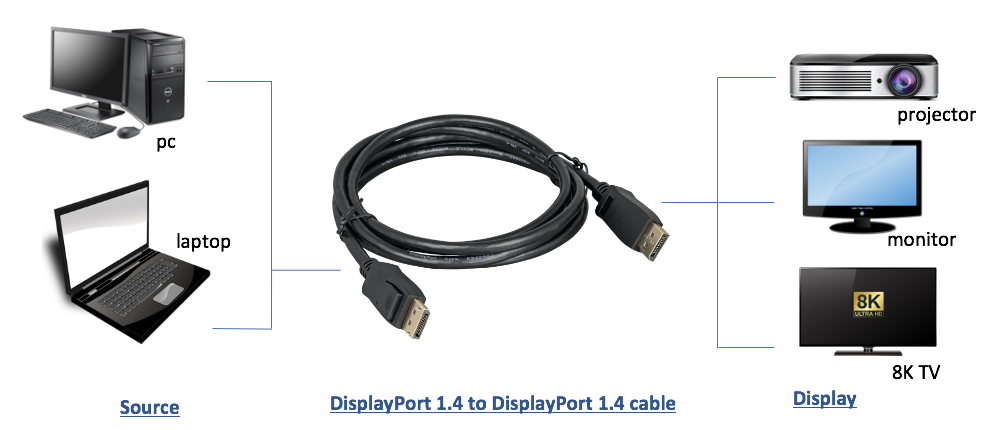

Connect a DisplayPort (DP, DP++, DisplayPort++) equipped computer to a 8K TV, monitor or projector with DisplayPort input.
- +

In stock

Ships Today If Ordered By 1pm PST

Purchasing this item will earn you 2 reward points (Reward point(s) $0.06) ! Applies only to registered customers, may vary when logged in.

**Eligible for Free Standard Shipping On Order $50 or More. Price Matched

FREE SHIPPING at $50 and more with code FREESHIP

To receive free ground shipping, enter the promo code in the promotion code box in your Checkout session. This offer applies to standard shipping on Internet orders only and does not apply to the out-of-stock item. FREE GROUND SHIPPING only applied if ship the lower 48 states . When selecting shipping method in the "Shipping/Payment Info" section of checkout, be sure to select the Free Ground Shipping . Free Shipping does not apply to PO Box, APO , APE, FPO, DPO, or like address. Free Shipping promotion is valid on online orders ONLY excluding phone orders, mail orders, faxed orders or purchase orders.

NOTICE:   Free shipping is non-transferable.  You MUST select UPS GROUND in order for the free shipping to apply. We will not honor the "FREE GROUND SHIPPING" if you did not select it during checkout process. Free shipping will be deducted at the last Checkout page before final checkout confirmation. Free ground shipping is applicable to orders at least $50.00 (excluding taxes and handling charge) to all lower 48 states only.


*** Free Shipping doesn't apply to Bulk Products or Cables, some products on Networking, Networking Racks, Floorstand Racks, Wallmount Rack, Workstations, and UPS Backup. See the full products list for Ineligible Products for free shipping.


*** Only 1 coupon code can be redeemed per order ***

*** Each promotional code cannot be combined with any other offers***


To Start Shopping, Click Here.

SF Cable is constantly researching similar items from other retailers for lower prices.
We will do our best to price match and offer the most competitive pricing to our customers.

For more information or to request a price match.
Please contact us at customerservice@sfcable.com or call 1-888-275-8755

Description

  • Compliant with DP1.4 specification.
  • Connect a DisplayPort (DP, DP++, DisplayPort++) equipped computer to a 8K TV, monitor or projector with DisplayPort input.
  • Support resolutions up to 8K@60Hz and 4K@120Hz with High Dynamic Range (HDR) deep color.
  • Support HBR3 bandwidths of 32.4Gbps.
  • Extend audio transport up to 32 channels and 1536kHz sample rate.
  • Feature Display Stream Compression 1.2 (DSC) technique which performs up to 3:1 compression ratio.
  • Gold-plated connector provides superior transmission, high reliability and durability.
  • DisplayPort connector with latches keeps cable securely plugged in.
  • Backward compatible with previous DisplayPort versions.
  • All relevant materials are complied with RoHS directive.
Connector A : DisplayPort 1.4 Male
Connector B: DisplayPort 1.4 Male
Conductor :

3FT-    32 AWG. x 5P + 32 AWG. x 5C

6FT-    30 AWG. x 5P + 30 AWG. x 4C

10FT-  27 AWG. x 5P + 27 AWG. x 4C

15FT-  26 AWG. x 5P + 26 AWG. x 4C

Technical Drawings

Technical Drawings

Warranty

Lifetime
