Gigabit Media Converter SC/MM MC200CM

SKU
1025-SF-17

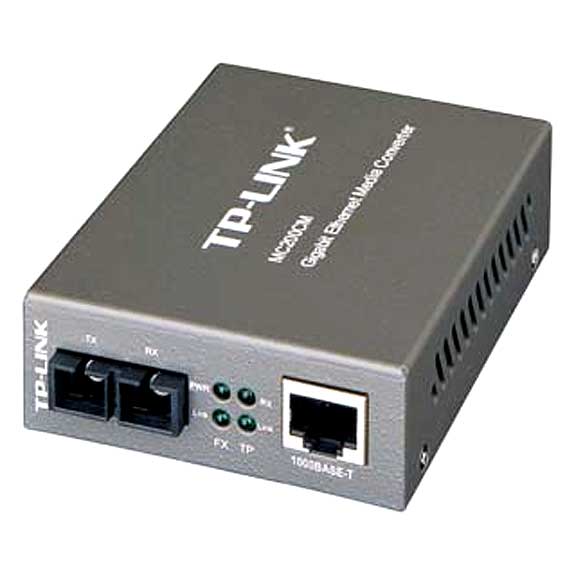

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa
$79.30
Gigabit Media Converter SC/MM MC200CM
Gigabit Media Converter SC/MM MC200CM
    • Purchasing this item will earn you 79 reward points (Reward point(s) $2.37) !
    • Applies only to registered customers, may vary when logged in.
TP-Link Product Page: MC200CM

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data. Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK!|s 19!| system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.

  • Works at 1000Mbps in Full-Duplex mode for both TX port and FX port‚
  • Link Fault Passthrough and Far End Fault minimize the loss caused by link‚ failure timely‚
  • Supports auto MID/MID-X for TX port‚
  • Provides switch configuration of Force /Auto transfer mode for FX port‚
  • Extends fiber distance up to 0.5km‚
  • Easy-to-view LED indicators provide status to monitor network activity easily
  • External power supply (power adpter included)
Standards and Protocols
‚ IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function
‚ Full Duplex Flow Control (IEEE 802.3x)
‚ Extends fiber distance up to 0.5km using 50/125um fiber
0.22km using 62.5/125um fiber)

‚ Link‚ Fault‚ Passthrough‚ and‚ Far‚ End‚ Fault‚ minimize‚ the‚ loss
caused‚ by‚ link‚ failure‚ timely‚

Ports
‚ 1 1000M SC port
‚ 1 1000M RJ45 port (Auto MDI/MDIX)
Network Media
1000BASE-T
‚ UTP Cat.5E cable (maximum 100m)
‚ EIA/TIA-568 100 ohm STP (maximum 100m)
1000BASE-FX
‚ Multi-mode Fiber
LED Indicators
‚ PWR, LINK, RX
Safety & Emission
‚ FCC, CE
Dimensions (W*D*H)
‚ 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Environment
‚ Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing‚
Storage Humidity: 5%~90% non-condensing
Power Supply
‚ External Power Adapter
