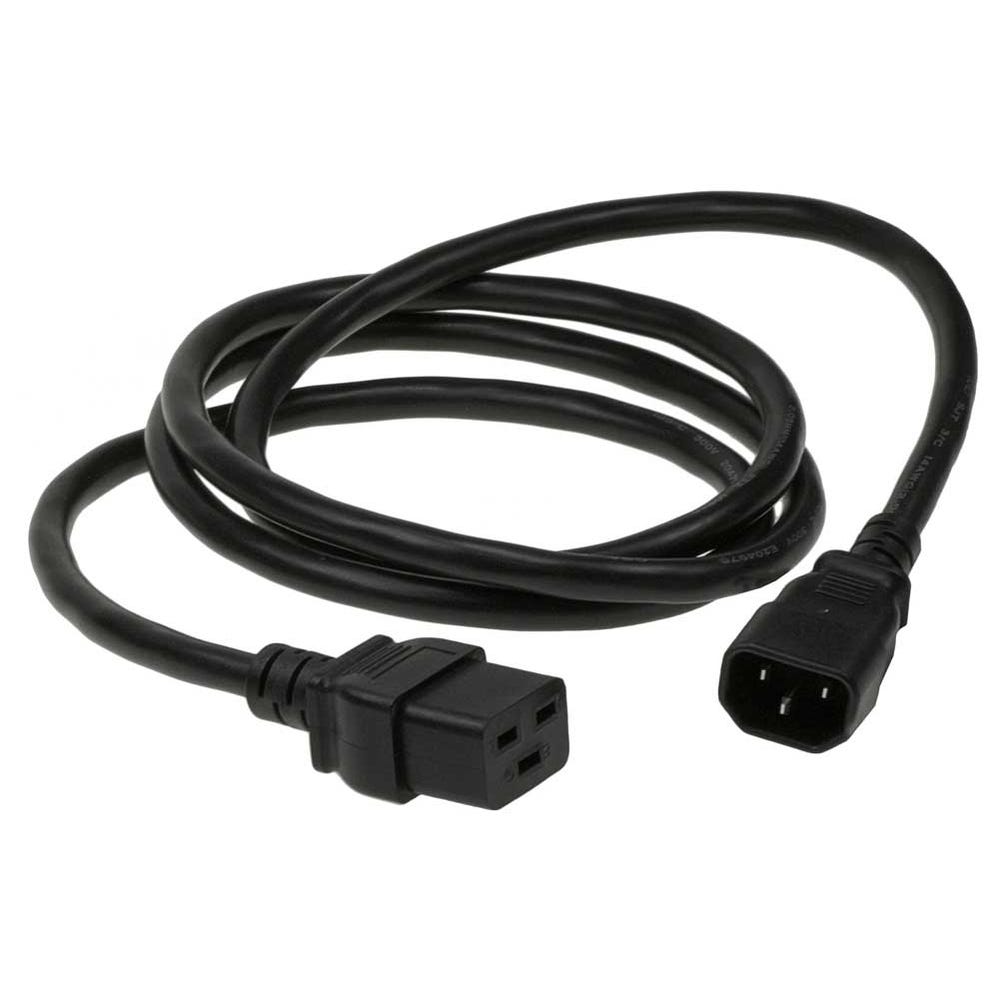

14 AWG C14 to C19 SJT Power Cord

SKU #P-C19C14-14A
Ideal for powering PDUs servers UPSs and many more devices and appliances which use the IEC-60320-C20 inlet.
- +

In stock

Ships Today If Ordered By 1pm PST

Purchasing this item will earn you 2 reward points (Reward point(s) $0.06) ! Applies only to registered customers, may vary when logged in.


These IEC power cords are the standard Jumper Cables or Network Patch Cables used for servers, networking equipment, and telecommunications equipment. Ideal for powering PDUs, servers, UPSs, and many more devices and appliances which use the IEC-60320-C20 inlet.

  • IEC C14 to C19 2 foot power cord
  • IEC C14 3 pin plug to IEC C19 with 14/3 SJT black wire
  • 1 feet with UL and CSA approvals. Rated up to 15A 250V

CAUTION NOTE: While 100% of the components for this cord are UL approved, UL does not certify or allow configurations where the receptacle amp capabilities exceed those of the plug as a General Use item. SF Cable urges caution when using this product and is not responsible is any way for any damages caused by using this cord.  It is the responsibility of the user to determine if the configuration is dangerous or could cause damage in any way.

Male Plug IEC60320 C14 (molded with 35P PVC)
Female Plug IEC60320 C19 (molded with 35P PVC)
Wire Jaclet Standard SJT
Gauge 14 AWG
Conductors 3 Wire
Copper Wire Stranding 2.08mm
Jacket Material PVC
Temperature Rating Up to 105°C
Conductor Color Code Black, White and Green / NACC (North American color code)
Voltage Up to 250 Volts AC
Amperage Up to 15 Amps
Cord Length 1 Feet
Color Black, Blue, Green, Red
Testing 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout.
Environmental Compliance RoHS, REACH
Country of Origin China

Check out our C14 Secure Sleeve

Technical Drawings

Technical Drawings
