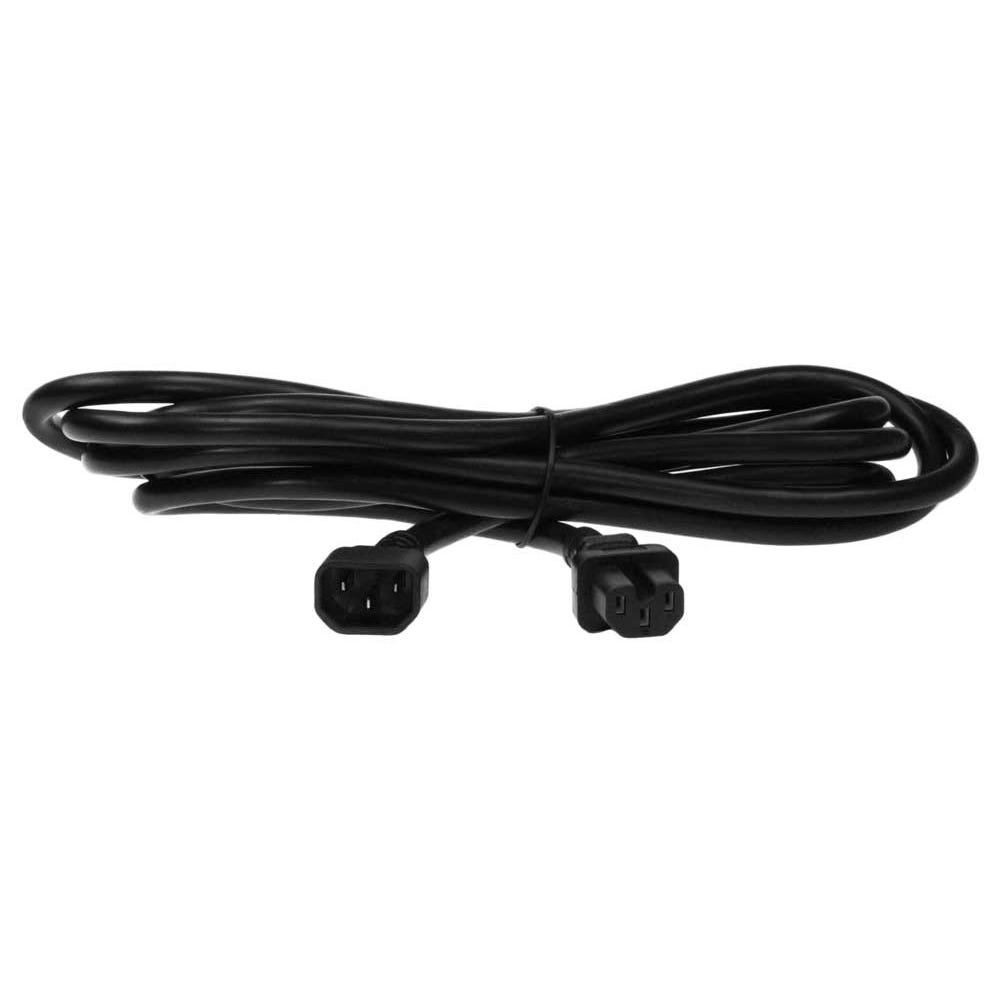

14 AWG IEC320 C14 to C15 14/3 SJT Power Cord

SKU #SF-3220
Used to connect a server to a PDU in a data center environment.
- +

In stock

Ships Today If Ordered By 1pm PST

Purchasing this item will earn you 2 reward points (Reward point(s) $0.06) ! Applies only to registered customers, may vary when logged in.

Description

IEC C14 to C15 power cord IEC 60320-C14 to C15 with 14/3 SJT black wire 3 feet with cUL approval Rated up to 15A 250V. 6 foot version available here: SF-3220-06B-14 10 foot version available here: SF-3220-10B-14 Specifications Male Plug IEC 60320-C14 (molded with 35P PVC) Female Receptacle IEC60320 C15 (molded with 35P PVC) Wire Jacket Standard SJT Gauge 14 AWG Conductors 3 Wire Copper Wire Stranding 41 strands of 0.254mm Jacket Material PVC Temperature Rating Up to 105C Wire Outer Diameter 9.3mm Conductor Color Code Black, White and Green / NACC (North American color code) Voltage Up to 250 Volts AC Amperage Up to 15 Amps Cord Length 3 Feet Color Black Testing 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout. Environmental Compliance RoHS, REACH, Sony Green Partner, ISO14001:2004, ISO9001:2008 Country of Origin China Check out our C14 Secure Sleeve

Technical Drawings

Technical Drawings

Warranty

Lifetime
