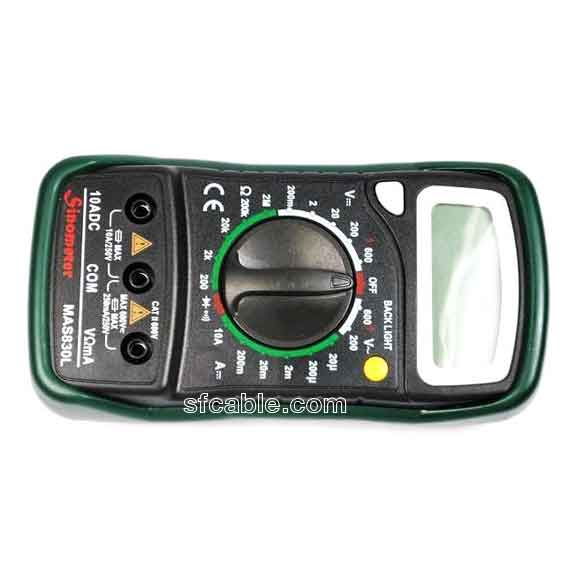

Mastech SinoMeter MAS830L Digital Multimeter Pocket DMM with Data Hold
SKU #AD-WL-14
Mastech SinoMeter MAS830L Digital Multimeter Pocket DMM with Data Hold. Transistor & diode test; overload protection. Single rotary switch operation.
$20.95
- +
In stock
Purchasing this item will earn you 2 reward points (Reward point(s) $0.06) ! Applies only to registered customers, may vary when logged in.
Description
wholesale Mastech SinoMeter MAS830L Digital Multimeter Pocket DMM with Data Hold. Transistor & diode test, overload protection. Single rotary switch operation.
The MAS830L series multimeter is compact, pocket-sized‚ and digital .
It is ideal for most appliances. This meter is convenient for the on the go professionals who needs to do basic measurements.
Technical specifications:
- Display: 1999 counts, digit is 15mm high
- DC voltage: 200mV/2/20/200/600V ±0.8%
- AC voltage: 200mV-600V ±1.2%
- DC current: 200‚µ A/2/20/200mA /10A ±3.0%
- Resistance: 200? /2K/20K/200K ?/2M ? ±1.0%
- HFE: 1 ~ 1000
- Diode check:3V/0.8mA
- Data hold
- Back light
- Continuity test
- Power: 6F22 (9V) x 1
- Size: 138mm x 69mm x 31mm
- Weight : Approx.170g
- Low cost, pocket size ideal for hobby & DIY users
- 3 1/2digits LCD with a maximum reading of 1999
- Transistor & diode test; Data hold;Low battery indication; overload protection; Single rotary switch operation
- Safety design to meet IEC1010
Technical Drawings
No specification info found
Warranty
1 Year
