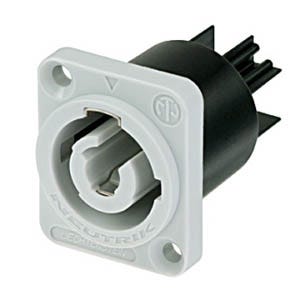

Neutrik Professional PowerCON "OUT" Terminal Gray NAC3MPB-1

SKU #2024-SF-70
Neutrik Neutrik The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact.
- +

In stock

Ships Today If Ordered By 1pm PST

Purchasing this item will earn you 2 reward points (Reward point(s) $0.06) ! Applies only to registered customers, may vary when logged in.

Description

Neutrik Neutrik The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

Features & Benefits

  • Locking 20 A / 250 V ac appliance coupler 3 contacts for line, neutral and premating safety ground
  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Fast and easy twist lock latching system
  • Extremely robust and reliable
  • Ergonomic design
  • User friendly latch design for easy handling
  • Unique Neutrik chuck type strain relief
  • UL, cUL recognized components
  • VDE certified
  • SEV approved
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product
  • Wire : 14AWG
  • Gender : Male

Technical Drawings

No specification info found
