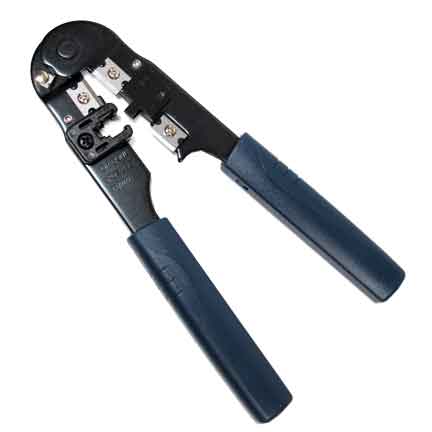

RJ11- RJ12 Crimp Tool

SKU
68TL-B1
Instructions: Squeeze handles and open the lock. Cut the modular cable to the desired length. Make certain that the end are cut squarely; not diagonally. Insert cable between stripper blades. Squeeze handles; cable must be keep perpendicular and then pull from the tool. Remove the outer jacket; insert the stripped cable into the plug; make sure the left wire at one end matches the right wire at the other end. Place modular pllug with cable into the tool's holder. Make sure the stripped wire is between the tab and gold contacts. Squeeze handles until it stops.
$12.55
In stock
$12.55
In stockShips today if ordered by 1pm PST
**Eligible for Free Standard Shipping On Order $50 or More. Details
Price Matched Details
RJ11- RJ12 Crimp Tool
SKU #
68TL-B1
    • Purchasing this item will earn you 12 reward points (Reward point(s) $0.36) !
    • Applies only to registered customers, may vary when logged in.
  • RJ11 (6P4C) and RJ12 (6P6C) modular plug crimping tool
  • For telepnone wiring
  • You can cut, strip, and crimp with this one tool.

Instructions

  1. Squeeze handles and open the lock.
  2. Cut the modular cable to the desired length. Make certain that the end are cut squarely, not diagonally.
  3. Insert cable between stripper blades. Squeeze handles, cable must be keep perpendicular and then pull from the tool.
  4. Remove the outer jacket, insert the stripped cable into the plug, make sure the left wire at one end matches the right wire at the other end.
  5. Place modular pllug with cable into the tool's holder. Make sure the stripped wire is between the tab and gold contacts. Squeeze handles until it stops.
RJ11- RJ12 Crimp Tool

RJ11- RJ12 Crimp Tool
Lifetime
