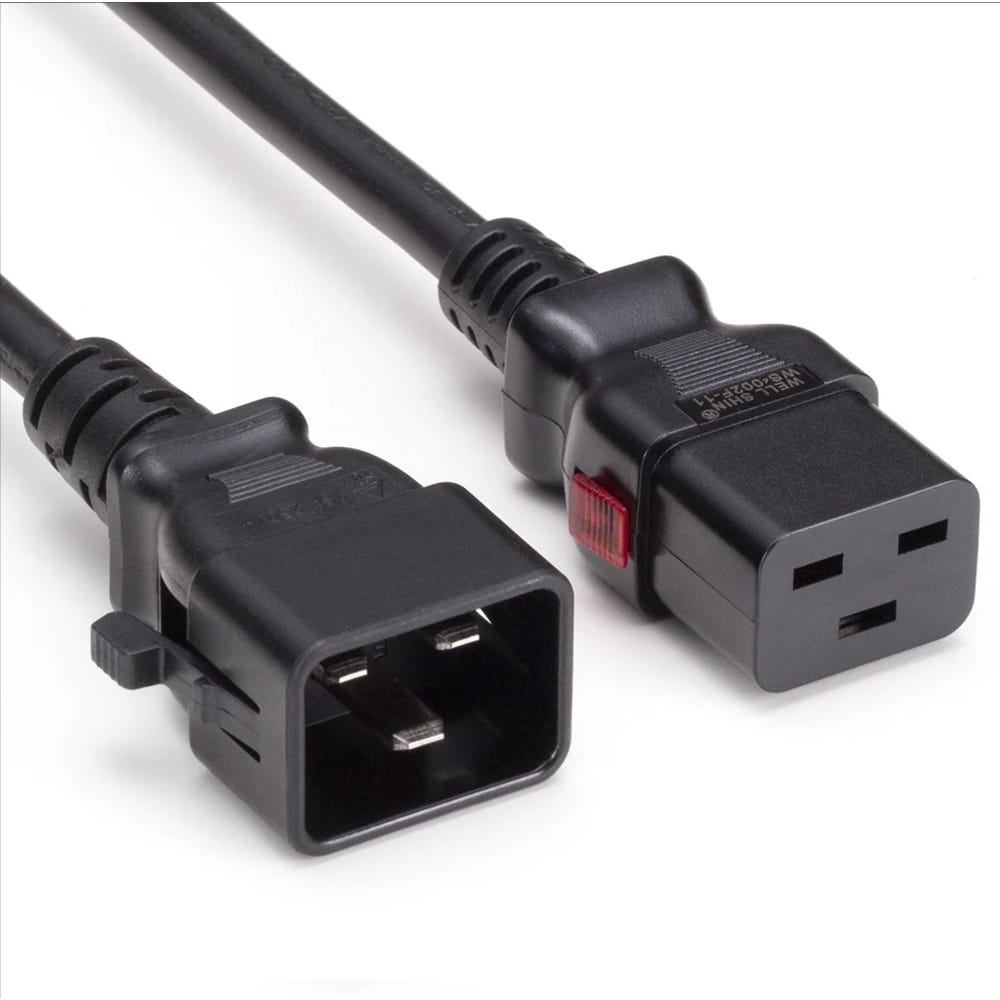

TwyLock® USA IEC C20 to C19 20A SJTW Dual Locking Cords
In stock
Purchasing this item will earn you 2 reward points (Reward point(s) $0.06) ! Applies only to registered customers, may vary when logged in.
FREE SHIPPING at $50 and more with code FREESHIP
To receive free ground shipping, enter the promo code in the promotion code box in your Checkout session. This offer applies to standard shipping on Internet orders only and does not apply to the out-of-stock item. FREE GROUND SHIPPING only applied if ship the lower 48 states . When selecting shipping method in the "Shipping/Payment Info" section of checkout, be sure to select the Free Ground Shipping . Free Shipping does not apply to PO Box, APO , APE, FPO, DPO, or like address. Free Shipping promotion is valid on online orders ONLY excluding phone orders, mail orders, faxed orders or purchase orders.NOTICE: Free shipping is non-transferable. You MUST select UPS GROUND in order for the free shipping to apply. We will not honor the "FREE GROUND SHIPPING" if you did not select it during checkout process. Free shipping will be deducted at the last Checkout page before final checkout confirmation. Free ground shipping is applicable to orders at least $50.00 (excluding taxes and handling charge) to all lower 48 states only.
*** Free Shipping doesn't apply to Bulk Products or Cables, some products on Networking, Networking Racks, Floorstand Racks, Wallmount Rack, Workstations, and UPS Backup. See the full products list for Ineligible Products for free shipping.
*** Only 1 coupon code can be redeemed per order ***
*** Each promotional code cannot be combined with any other offers***
To Start Shopping, Click Here.
SF Cable is constantly researching similar items from other retailers for lower prices.
We will do our best to price match and offer the most competitive pricing to our customers.
For more information or to request a price match.
Please contact us at customerservice@sfcable.com or call 1-888-275-8755
Description
- Locks on both ends without extra intervention. Easy to unlock.
- Compatible with P-lock equipment
- High quality. Certified by UL and cUL
- All cables certified up to 105°C operating temperature
- Compatible with most snap-in sockets of major PDU manufacturers
-
High retention force. Pull force 30lbs (14kg) for 1 minute
-
Multiple Colors available: black, red, blue and white. More colors on request
- Available in lengths from 1.0 meter to 2.5 meters. Other lengths on request
- Easily identifiable with part number and serial number labels on both ends
- Packaged in circular shape, not kinked
| Attribute | Specification |
|---|---|
| Male Plug | IEC60320 C20 3 prong 20A |
| Female Receptacle | IEC60320 C19 3 prong 20A |
| Wire Jacket Standard | SJTW |
| Gauge | 12 AWG |
| Conductors | 3 wire |
| Copper Wire Stranding | 65 strands of 0.254mm wire |
| Jacket Material | PVC |
| Temperature Rating | Up to 105°C |
| Wire Outer Diameter | 10.8mm |
| Conductor Color Code | Black, White and Green / NACC (North American color code) |
| Voltage | Up to 250 Volts AC |
| Amperage | Up to 20 Amps |
| Color | Multiple |
| Number Per Carton | Varies |
| Carton Weight | Varies |
| Carton Dimensions | (46 X 31 X 27cm) |
| Testing | 100% are individually tested for Hi-Pot, opens, shorts and pinout. |
| Certifications | UL/cUL Listed |
| Environmental Compliance | RoHS, REACH, ISO9001:2015 |
| Country of Origin | Taiwan |
Technical Drawings
Warranty
Lifetime
