16 Port EtherWAN 10/100 Web-Smart PoE Switch

SKU #1023-SF-82
Designed to operate in the small or medium network environment to provide Power to PoE driven devices, such as PoE IP cameras.
- +

In stock

Ships Today If Ordered By 1pm PST

Purchasing this item will earn you 2 reward points (Reward point(s) $0.06) ! Applies only to registered customers, may vary when logged in.

**Not Eligible for free shipping.

Description

Manufacturer code: EX17016
Manufacturer site

EtherWAN's EX17016 10/100Base Fast Ethernet Web-Smart PoE Ethernet Switches is designed to operate in the small or medium network environment to provide Power to PoE driven devices, such as PoE IP cameras. The EX17016 may be Desktop or Rack mounted.

All 16 ports on the EX17016 support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE) and can detect an IEEE802.3af compliant Powered Device (PD). Data and power can be transmitted to a Powered Device (PD) over the same twisted-pair Ethernet cable through any port on the EX17016.

The EX17016 provides a Web browser interface that allows the user to configure IP settings, Port based VLAN, QoS settings, and load default settings as well as indicate the status of the switch such as PoE conditions, Link status.

  • Supports IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
  • Full PoE power supplies on all ports at the same time
  • PoE power: 15.4W per port/ 124W per switch
  • 1024 MAC addresses
  • 512K bits buffer memory PoE (Power status, Link status) through the Web browser Interface
  • System, IP Configuration, Port-based VLAN, QoS Mode, QoS
  • Priority through the Web browser Interface
    10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
    Full wire-speed forwarding rate‚
    100 ~ 240VAC, 50~60Hz Internal Universal PSU‚
    0°C to 45°C(32°F to 113°F) operating temperature range
  • Metal case
  • Supports Desktop and Rack Mounting installation

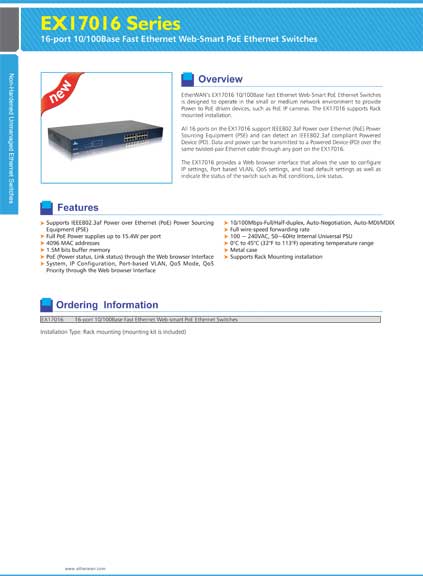

Technical Drawings

Technical Drawings

Warranty

1 Year
