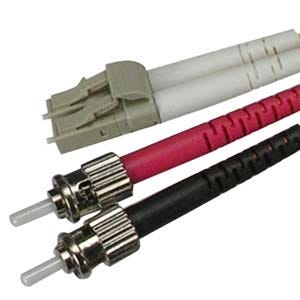

15m LC/UPC ST/UPC OM2 Multimode Duplex LSZH Fiber Optic Patch Cable

SKU #SFC200028
Used to connect patch panels and/or network devices that utilize duplex LC-ST style connectors and require OM2 50/125 multimode cabling.
- +

In stock

Ships Today If Ordered By 1pm PST

Purchasing this item will earn you 2 reward points (Reward point(s) $0.06) ! Applies only to registered customers, may vary when logged in.

Description

• Used to connect patch panels and/or network devices that utilize duplex LC-ST style connectors and require OM2 50/125 multimode cabling
• Ceramic ferrules provide precise alignment
• Integrated clip ensures correct A/B orientation
• Connectors utilize a UPC polish

  • Connector Type: LC-ST Multimode
  • Polishing: UPC
  • Return Loss: 35 dB
  • Insertion Loss: 0.2 dB (typical)
  • Ferrule Material: Ceramic (zirconia)
  • Ferrule Diameter: 1.25 mm / 2.5 mm
  • Cabled Optical Fiber: OM2
  • Nominal Diameter Core: 50/125 μm
  • Jacket Material: LSZH
  • Temperature Range: -20°C +70°C

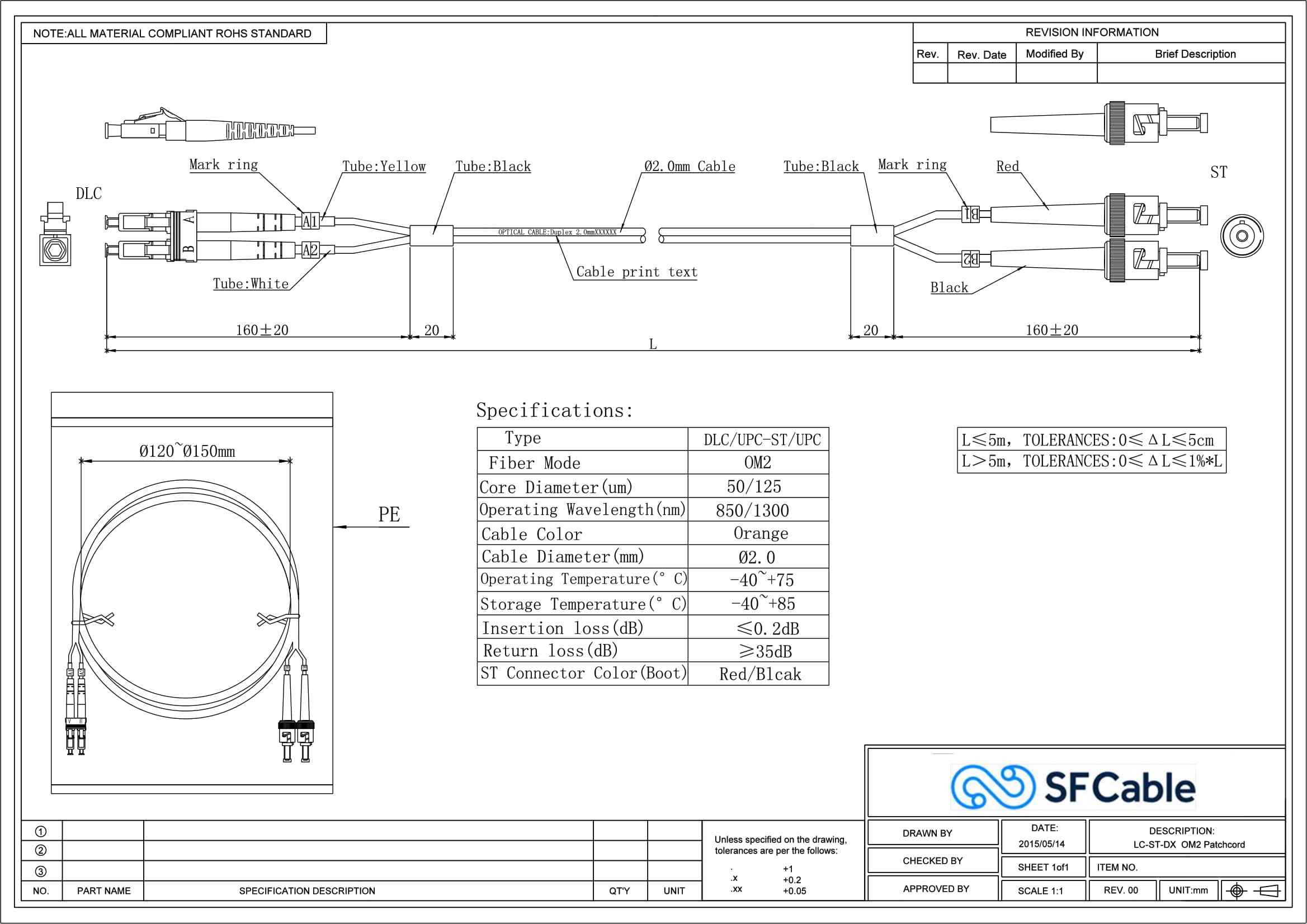

Technical Drawings

Technical Drawings
