Mini DisplayPort Male to HD15 VGA Female Adapter

SKU #1840-SF-32
Connect any standard analog monitor; projector; or LCD that uses a VGA with the Mini DisplayPort to VGA Adapter.
- +

In stock

Ships Today If Ordered By 1pm PST

Purchasing this item will earn you 2 reward points (Reward point(s) $0.06) ! Applies only to registered customers, may vary when logged in.


The new MacBook, MacBook Pro, and MacBook Air each have a Mini Display Port that allows you to connect an external display or projector using an adapter. You can use an external display as your main workspace or to extend your desktop, or you can work in mirrored mode with a projector so you can view what your audience sees.

  • Connect any standard analog monitor, projector, or LCD that uses a VGA connector with the Mini DisplayPort to VGA Adapter.
  • Mini DisplayPort 1.1a compliant receiver offering 5.4 Gbps bandwith over 2 lanes.
  • Integrated triple 10-bit, 162 MHz video DAC for analog VGA signal output.
  • Supports up to 1080p, 1920 x 1200 reducted blanking video resolution. EDID pass-through from PC source to display.
  • Spread Spectrum (de-spreading) for EMI reduction.
  • Automatic sink detection.
  • Low power standby mode operation initiated based on sink detection status.
  • Powered from Mini DisplayPort source. 3.3V IO, 1.2V Core.
  • Low power operation - Active 400mW, standby mode 15mW.
  • Connectors: Mini DisplayPort Male to VGA Female.
  • Length: 6.5 inches
  • NOTE: for few display cards, the image would not appear until the PC enters into Windows from DOS at the time of restarting.
  • Compatible With Apple: iMac / Mac Mini / Mac Pro / MacBook Air / MacBook Pro 13 inch / MacBook Pro 15 inch / MacBook Pro 17 inches.
  • NOTE: Adapter only works with laptops with Mini Displayport, please check with your device s output specification before placing order.
Mini Display Port Male to VGA Female Adapter

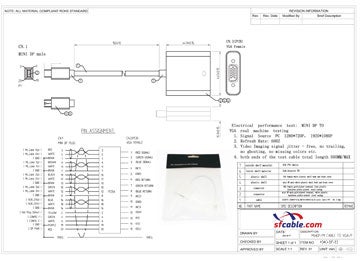

Technical Drawings

Technical Drawings
